ACHIEVE AP300-TD

Цена без НДС

Images31Videos1

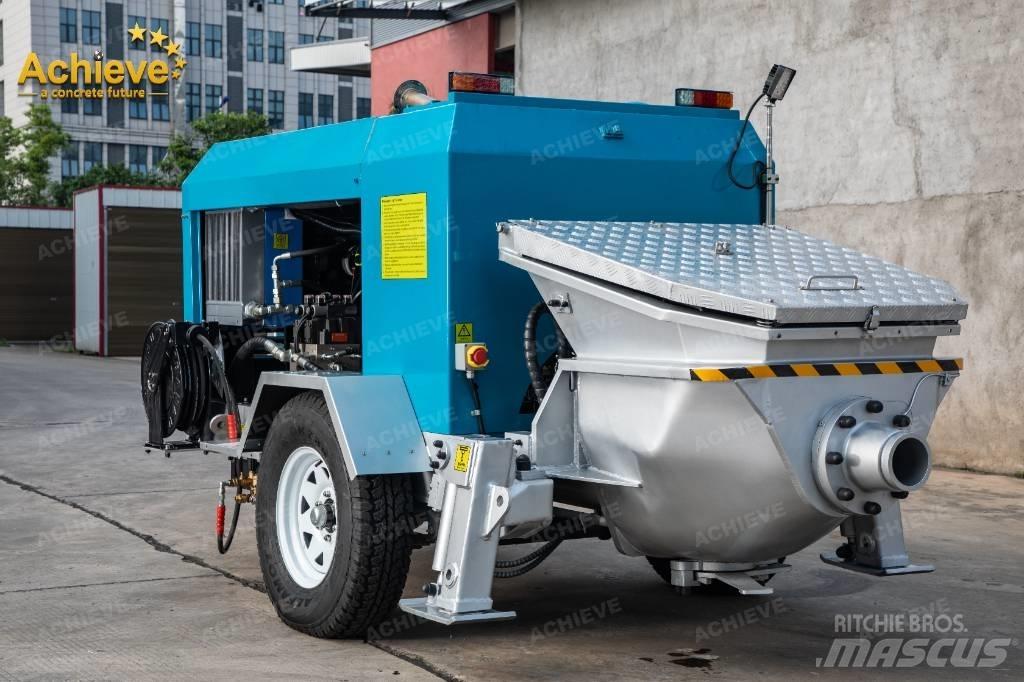

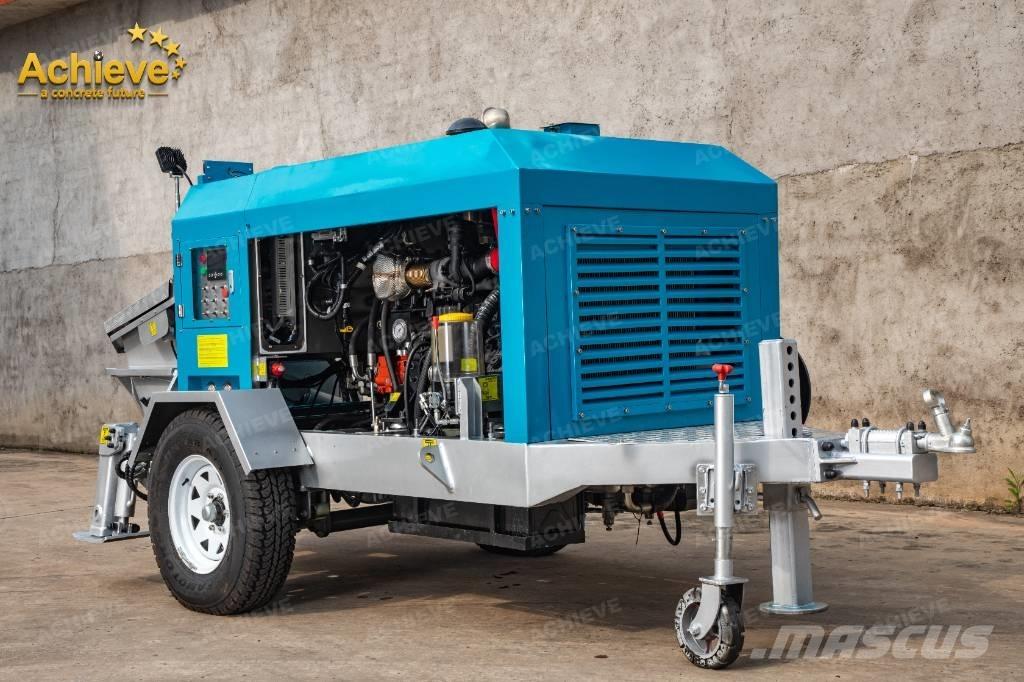

ACHIEVE AP300-TD Бетононасосы
ACHIEVE AP300-TD Бетононасосы
FavoriteИзбранное
shareПоделиться
Save searchСохранить поиск
Распечатать

INFO

Тип машины
Бетононасосы
Марка / модель
ACHIEVE AP300-TD
Год выпуска
2024
Состояние
Новый
Страна местонахождения
Китай
Общая категория
1
2
3
4
5
Mascus ID
49885CF8

ЦЕНА

Выбор валюты

ПОДРОБНОСТИ

Серийный номер
Concrete trailer pump truck parameters
Последний тех осмотр
2024-09-26
Масса
2 600 кг
Мобильность
Мобильный
Источник энергии
Дизельный двигатель
Мощность насоса
50 кВт
Габариты (ДхШхВ)
46000 x 17800 x 17200 мм
Engine manufacturer
Deutz, Köln-deutz
Тип насоса
Поршень
Страна производства
Китай
Условия доставки
FOB, CIF
Сертификаты
EPA, CE, TÜV
Доп.оборудование
Theoretical maximumthroughput 5-25 m³/h 5-30 m³/h 45m³/h Maximum conveying pressure 80bar 70bar 80bar Specification of conveying cylinder 160 ㎜ 150㎜ 180mm Work schedule 800mm 1000㎜ 1000mm Maximum stroke per minute 27 30 30 Engine brand Deutz, Köln-deutz Deutz, Köln-deutz DEUTZ (imported from Germany)/Dalian diesel engine in China Engine type TD2.9-L4 (EKZ11501) 2200r/min TD2.9-L4（EKZ11505) 2200r/min TCD3.6L04/BF4M2012-09T3R Power 50KW 55KW (3.7562 Horsepower） 74.4Kw/72Kw Discharge US EPA Tier 4 US EPA Tier 4 Euro 5/Country 3 Fuel tank volume 65L 98L 98L Volume of hydraulic tank 200L 200L 200L Hopper structure S valve S valve S valve Hopper height 960㎜ 960㎜ 1250mm Hopper capacity 260L 260L 300L Outlet diameter 125 ㎜ 125㎜ 125mm Maximum aggregate size ≤30㎜ ≤30㎜ ≤40mm Trailer Single Shaft、electric controller Single Shaft、electric controller Single Shaft、electric controller Weight 2300Kg 2600㎏ 2600㎏ External
Прочая информация
ACHIEVE AP300-TDE European Version Of Concrete Pump New Product Trailer Mounted Concrete Pump The AP300 piston pump is ideally suited for controlling shotcrete smaller than 30 mm, and the AP300 engineers designed and defined a completely new product based on the criteria used by customers in the European market. This machine has more power and a higher lightweight, and every detail has been thought through. The AP300 is easier to maintain than any previous model, requires less maintenance costs and is our most user-friendly design. In addition, ACHIEVE will be happy to explain to you additional advantages and questions about your individual requirements 1.Use industrial motion controllers to optimize fuel output. 2.The new engine technology of Deutz engines imported from Germany - clean and efficient is suitable for all the requirements of the Stage V "emission standard", obtained the clean emission certificate from the United States, with more power and higher delivery rate. 3.TПоказать все...

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Китай
