MURPHY MPC-20-R2

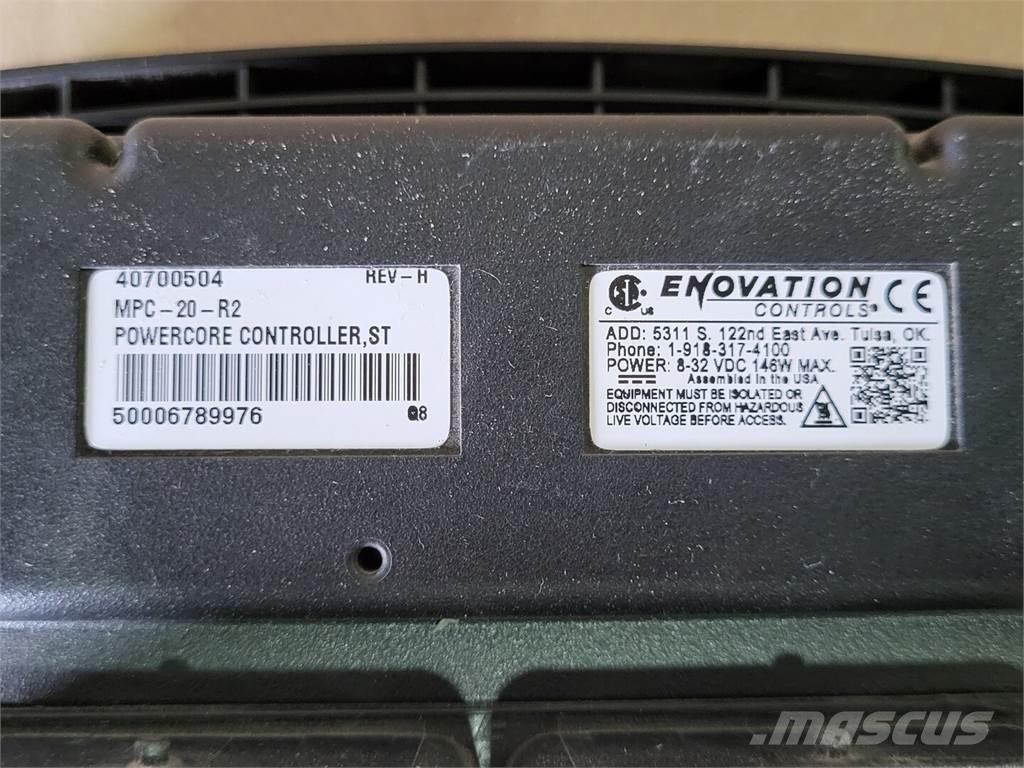

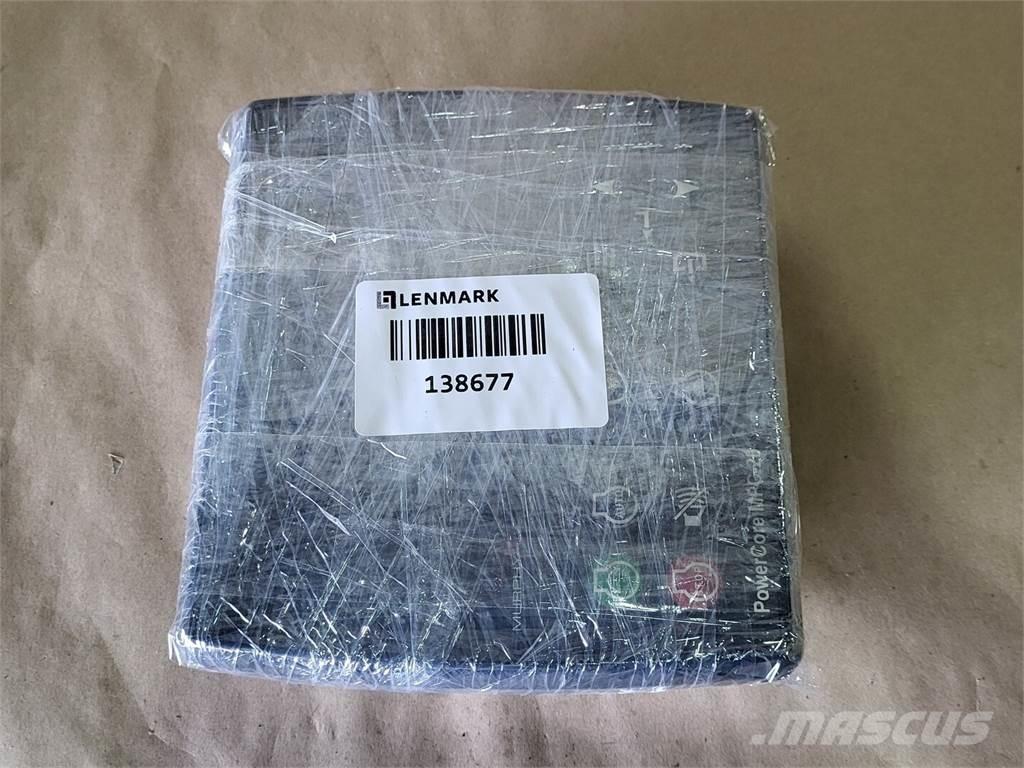

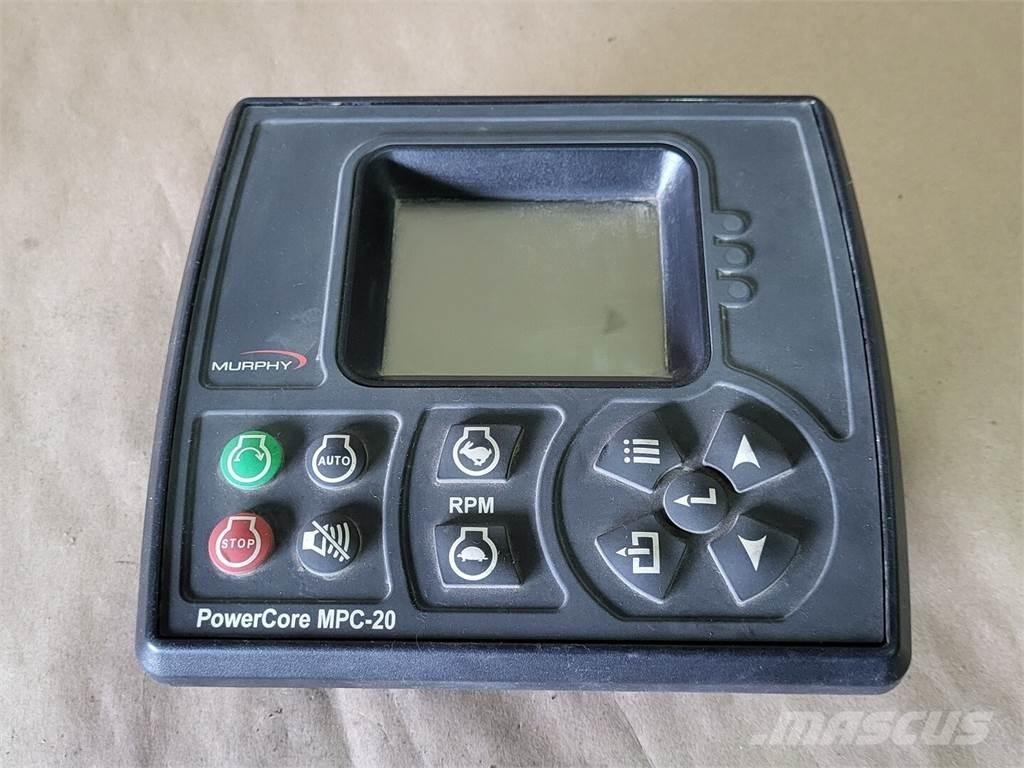

SURPLUS NEW Murphy MPC-20-R2 PowerCore Controller – Electrical Control Panels & Enclosures Title: PowerCore Controller MPC-20-R2 SKU: 138677 Model: MPC-20-R2 Condition: Surplus New Dimensions: 2.00 (H) x 8.00 (W) x 8.00 (L) inches Power Supply: - Operating Voltage: 8-32 VDC, reverse battery polarity & load dump protected - Current consumption: 18W Max without 2 2A High-sides, active, 146W Max with 2 2A High-sides active Inputs (15): - (6) Digital, configurable (active on High, Low, Open) - (8) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground) - (1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS) Outputs (13): - (6) Relay, Form C (dry / volt-free), 10A - (2) Low-side FET (-DC), 1A - (2) High-side FET (+DC), 2A - (2) +5VDC, 200mA - (1) 0-5VDC Analog Communications: - (1) CAN: J1939 - (1) RS485: Modbus RTU - (1) USB: Programming Mating Connector: Delphi, SICMA 90 Position
