PTI ONAN

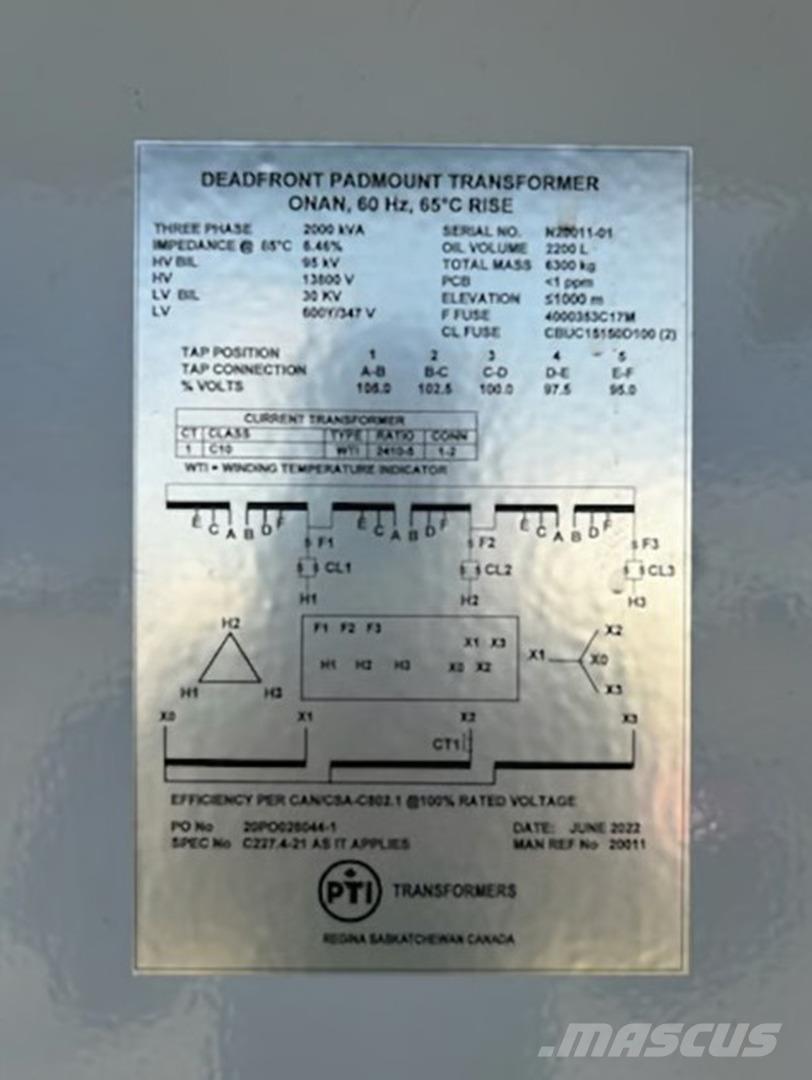

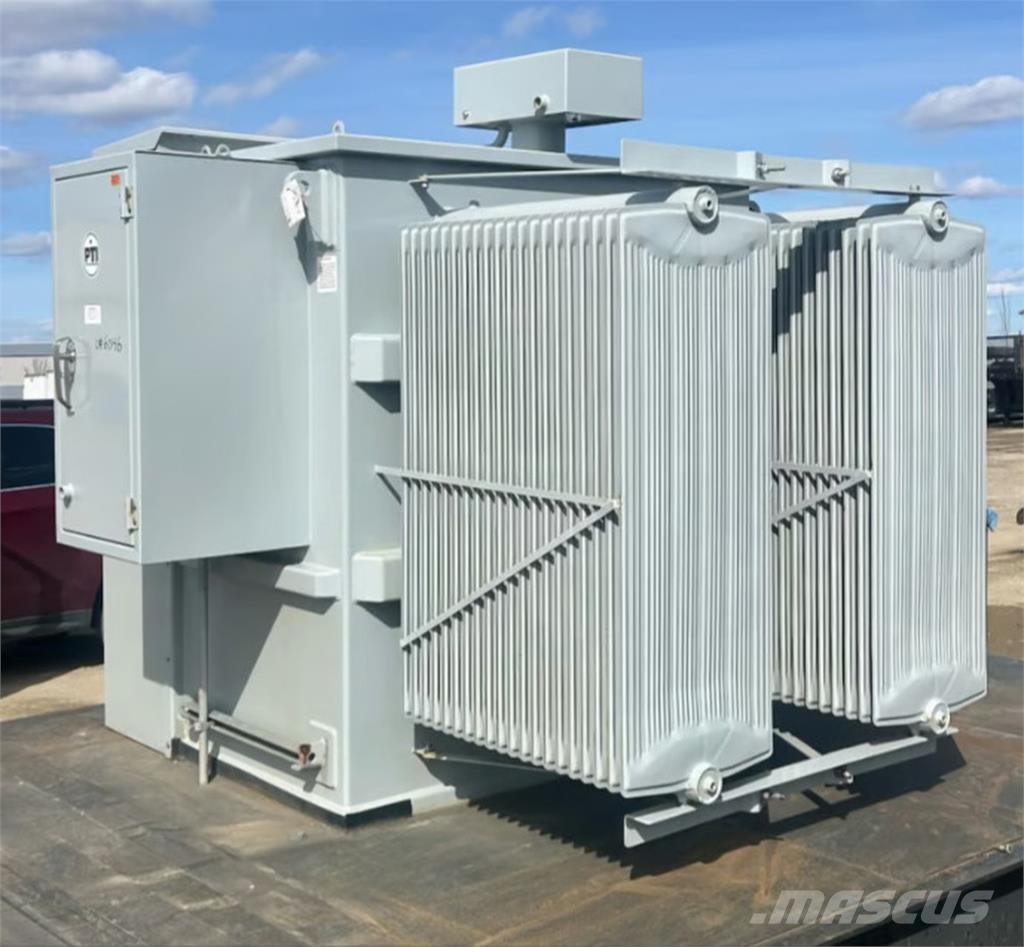

SURPLUS NEW 2022 PTI ONAN 2000 kVA Padmount Transformer 13800 pri. volts, 600Y/347 sec. volts – Transformers – 2000 kVA, Power Transformer , Isolation , Oil , 13800 volts, 600/347 volts, 3-phase Title: 2000 kVA Padmount Transformer 13800 pri. volts, 600Y/347 sec. volts, ONAN SKU: 141682 Model: ONAN Year: 2022 Condition: Surplus New S/N: N-20011-01 ElectricalkVA:2000kVA Primary Voltage:13800volts Secondary Voltage:600/347volts Phase:3-phase GeneralTransformer Type:Power Transformer Auto VS Isolation:Isolation Oil vs Dry:Oil Transformer includes: - 1) 16' Steel Skid - 2) MegaResister Neutral Ground Resister (Model MR-200) 600V / 347V 5 A Unit - 3) Control Panel 600 Amp, 15 KV 3-Phase Transformer Specifications: - Type: Deadfront Padmount Transformer - Cooling: ONAN - Phase: Three Phase - Power Rating: 2000 kVA - Frequency: 60 Hz - Temperature Rise: 65°C - Impedance ... 85°C: 6.46% - HV BIL: 150 kV - LV BIL: 30 kV - HV Voltage: 13800 V - LV Voltage: 600Y/347 V - Tap Positions: 1 (105.0%), 2 (102.5%), 3 (100.0%), 4 (97.5%), 5 (95.0%) - Tap Connections: A-B, B-C, C-D, D-E, E-F - Cooling Medium: Mineral Oil - Oil Volume: 2200 L - Total Mass: 6300 kg - PCB Content: < 1 ppm - Max Elevation: < 1000 m - F Fuse: 4000035317CM - CL Fuse: CBUC15150D100 (x3) - Current Transformer: Class: C10, Type: WTI 2410-5 Ratio: 1-2 - Connections: HV: Delta, LV: Wye, Diagram: See connection diagram on plate - Efficiency: Per CAN/CSA-C802.1 ... 100% rated voltage - Reference No: 20P0026044-1 - Spec No: C227.4-21 (as applicable)
