CAT 313

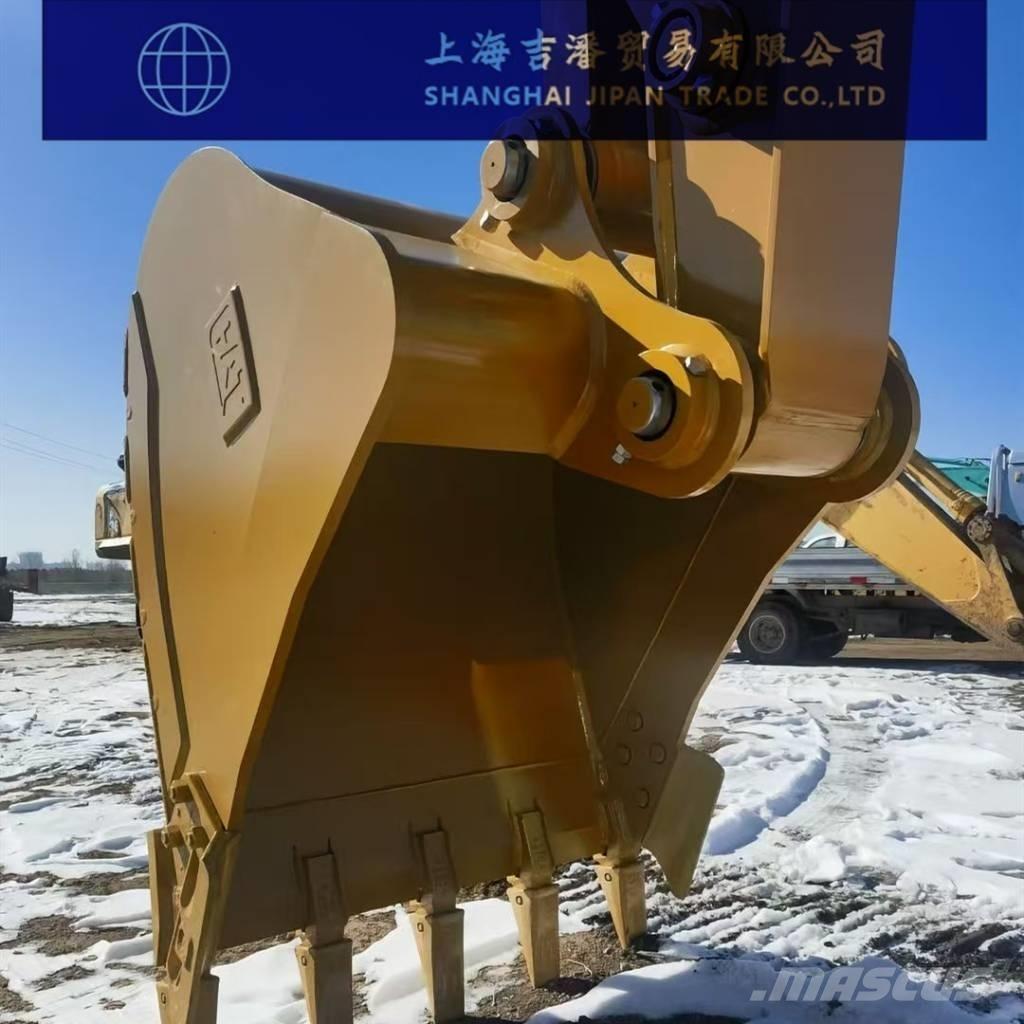

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

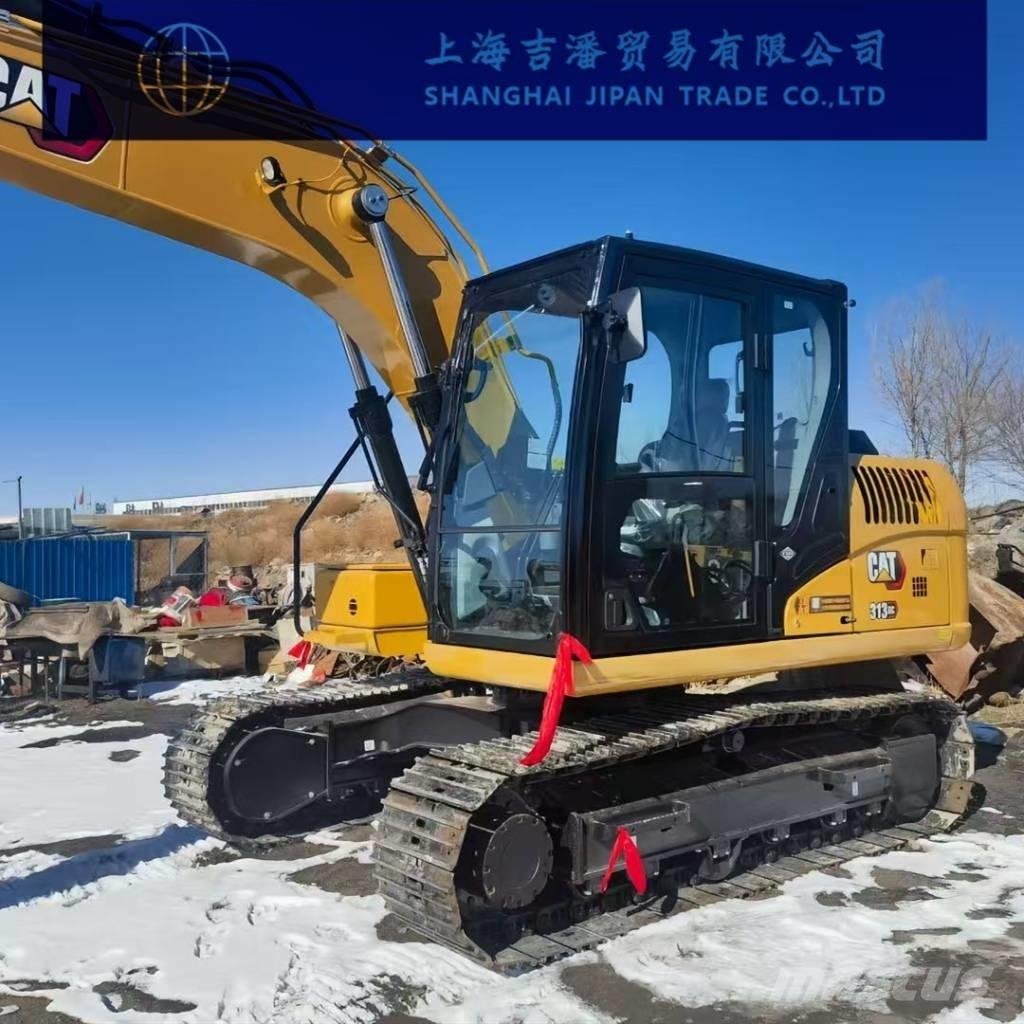

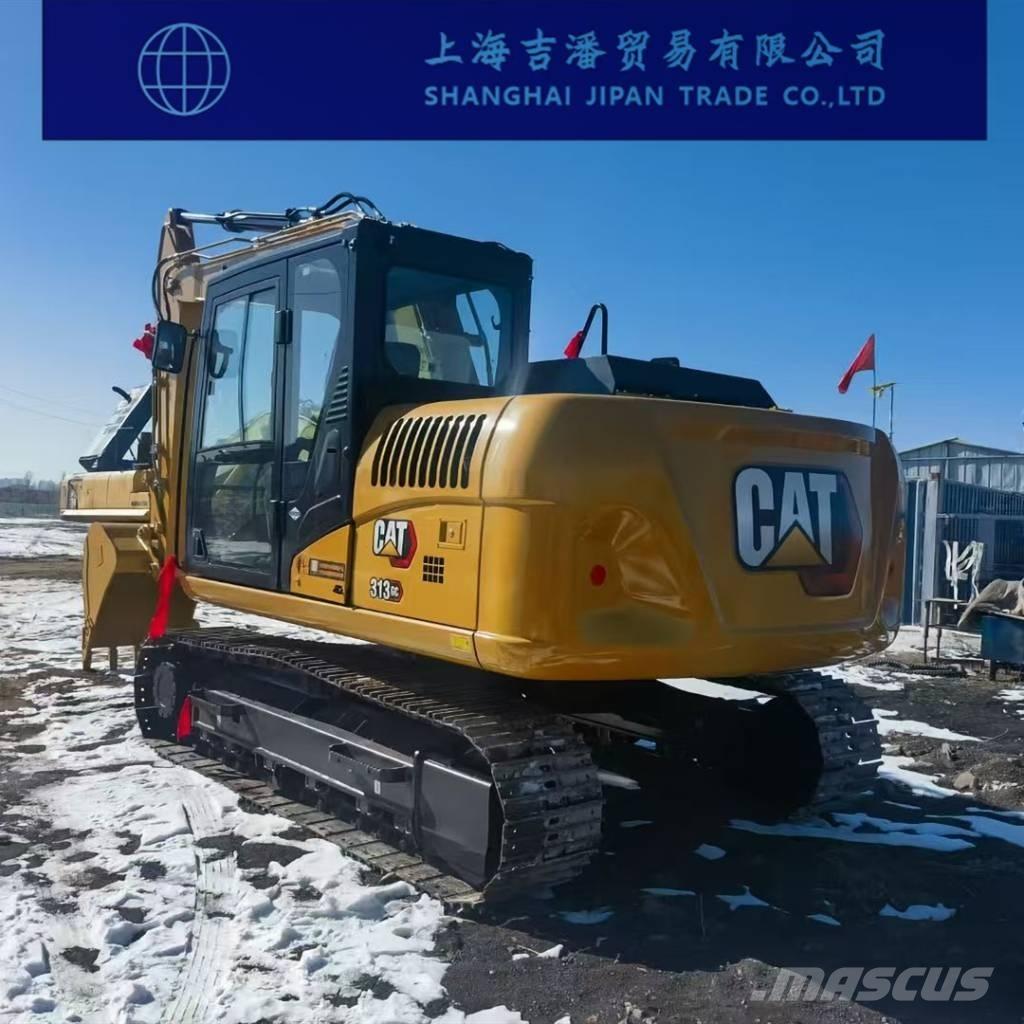

Caterpillar 313D Excavator Parameter configuration specification The working weight of the whole machine (kg) is 13430 Bucket capacity (m³) 0.52 Boom length (mm) 4650 Stick length (mm) 2500 Origin: Xuzhou, Jiangsu Tonnage (tons) 13 Bucket backhoe Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotation speed (rpm) 12.4 Travel speed (km/h) 5.5 Grounding Specific Pressure (Kpa) 41.8 (with 500mm Track Shoes) Bucket digging force (kN) 82 Stick digging force (kN) 63 Maximum traction (kN) 114 dynamical system Engine model: Caterpillar Cat C4.2 ACERT Rated power (kw/rpm) 67 (net power) Displacement (L) 4.25 Number of cylinders (units) 4 Bore × stroke (mm) 102×130 Cooling method: Water cooling The work form meets the emission requirements of U.S. EPA Tier 3 and Euro IIIA Directive 97/68/EC. Hydraulic system Main overflow set pressure (Mpa) 30.5 The maximum flow rate of the main pump (l/min) is 127 Traveling Hydraulic Circuit (Mpa) 35 Slewing hydraulic circuit (Mpa) 23 Pilot oil circuit (MPa) 41.2 Pilot pump flow rate (L/min) 21.9 Boom cylinder - number × bore × stroke (mm) 2×110×1015 Bucket Cylinder - Number of Numbers× Bore × Stroke (mm) 1×120×1197 Bucket cylinder - number × bore × stroke (mm) 1×100×939 Oil capacity Fuel tank (L) 250 Hydraulic Tank (L) 150 Hydraulic System (L) 162 (with Fuel Tank) Engine oil change (L) 19.5 Coolant (L) 17.9 Body size Total length of transport (mm) 7610 Total Transport Width (mm) 2490 Total transport height (mm) 2830 (to boom top) Cab total height (mm) 2760 Counterweight ground clearance (mm) 915 Total track length (mm) 3490 Track shoe width (mm) 500 (standard) Total Track Width (mm) 2490 Track gauge (mm) 1990 Minimum ground clearance (mm) 430 Rear end turning radius (mm) 2140 Scope of work The maximum excavation radius of the stopping surface (mm) is 8220 Maximum digging depth (mm) 5580 Maximum unloading height (mm) 6060 Maximum vertical digging depth (mm) 5040 The maximum effective digging depth (mm) is 5380 Boom slewing angle (left/right °) None Width × height of bulldozer plate (mm) None Dozer shovel lifting or pushing depth (mm) None
