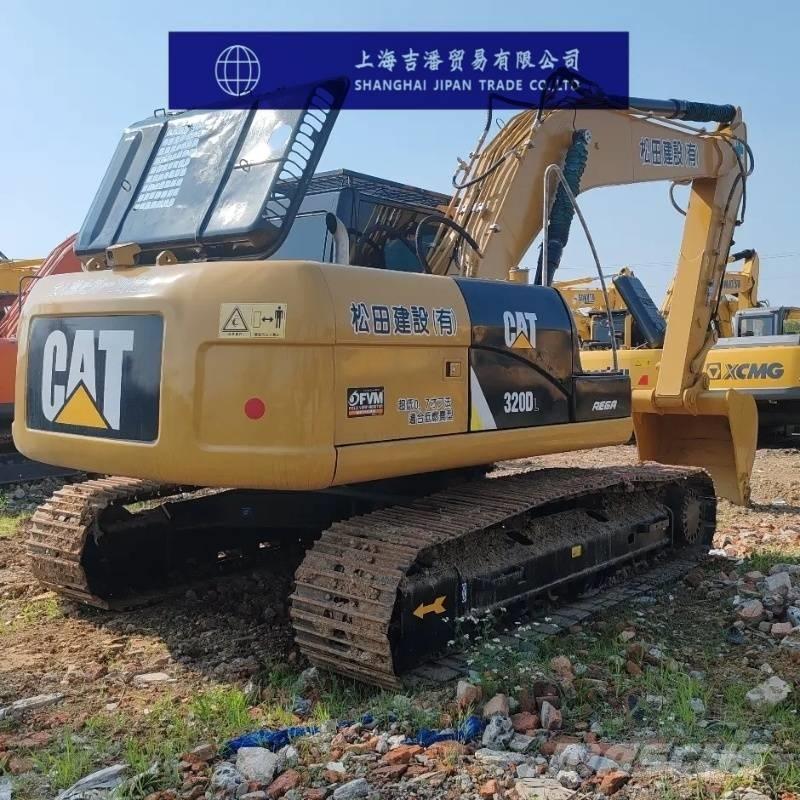

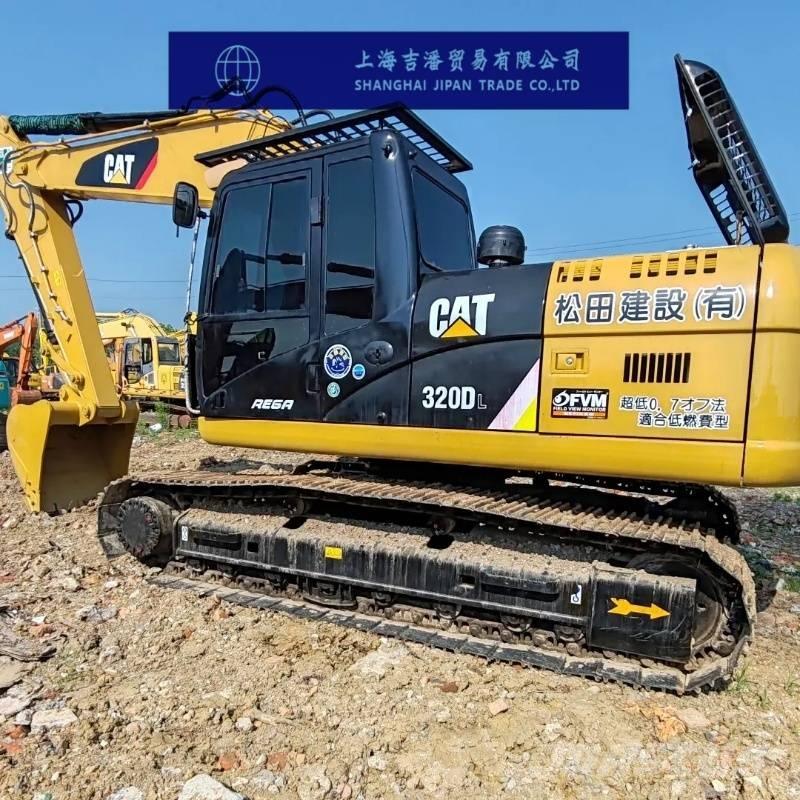

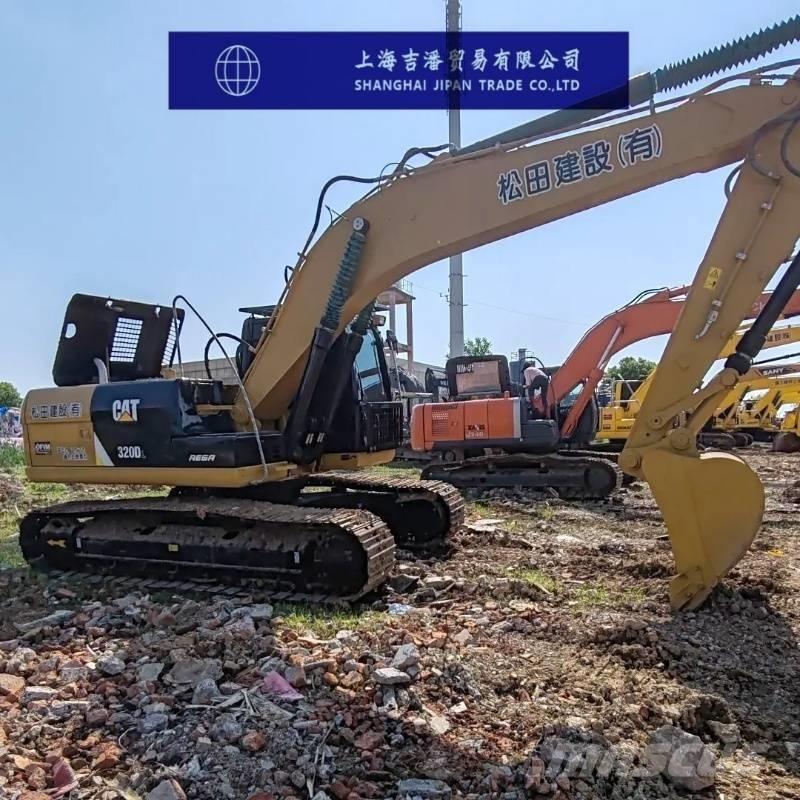

CAT 320 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: Operating Weight: 20,930 kg Bucket Capacity: 1 m³ Boom Length: 5,700 mm Arm Length: 2,900 mm Track Shoe Width: 600 mm Track Gauge: 2,200 mm Overall Transport Length: 9,460 mm Overall Transport Width: 2,800 mm Overall Transport Height: 3,050 mm Performance Parameters: Swing Speed: 11.5 r/min Travel Speed: 3.5/5.7 km/h Gradeability: 70% Ground Pressure: 6 kPa Bucket Digging Force: 140.1 kN Arm Digging Force: 106.4 kN Maximum Traction Force: 206 kN Engine Parameters: Engine Model: Cat C6.4 ACERT Rated Power: 103 kW at 2,000 rpm Displacement: 6.37 L Number of Cylinders: 6 Bore × Stroke: 102 × 130 mm Hydraulic System Parameters: Main Pump Maximum Flow: 205 L/min Pilot Pump Flow: 32.4 L/min Maximum Pressure of Pilot System: 3,900 kPa Boom Cylinders: 2 units, bore 120 mm, stroke 1,260 mm Arm Cylinder: 1 unit, bore 140 mm, stroke 1,504 mm Bucket Cylinder: 1 unit, bore 120 mm, stroke 1,104 mm Main Relief Valve Setting Pressure: 35,000 kPa Fluid Capacity Parameters: Fuel Tank Capacity: 410 L Hydraulic Oil Tank Capacity: 120 L Engine Oil Change Capacity: 22 L Coolant Capacity: 29 L
