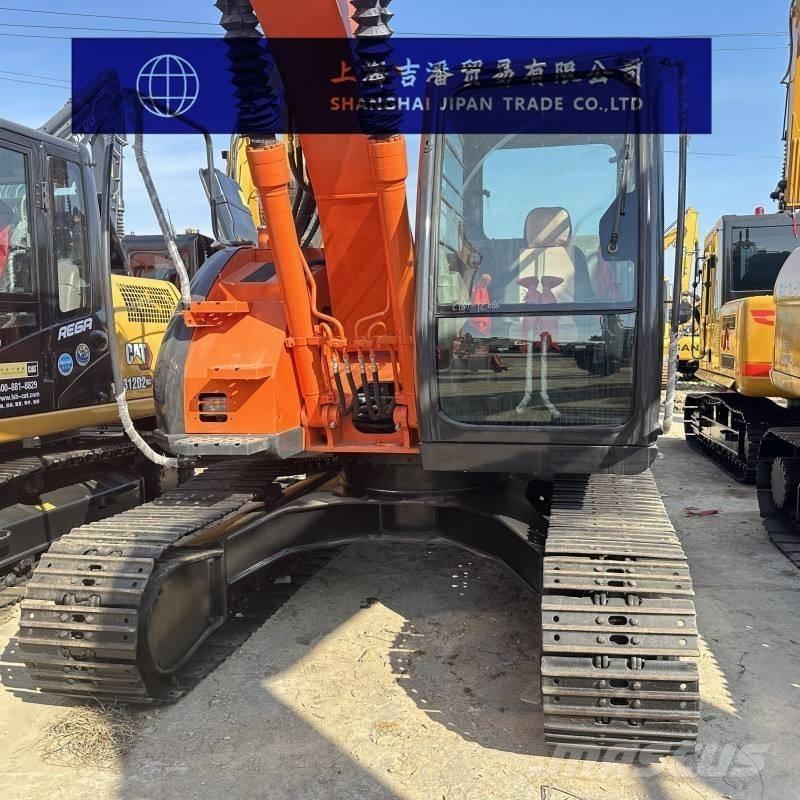

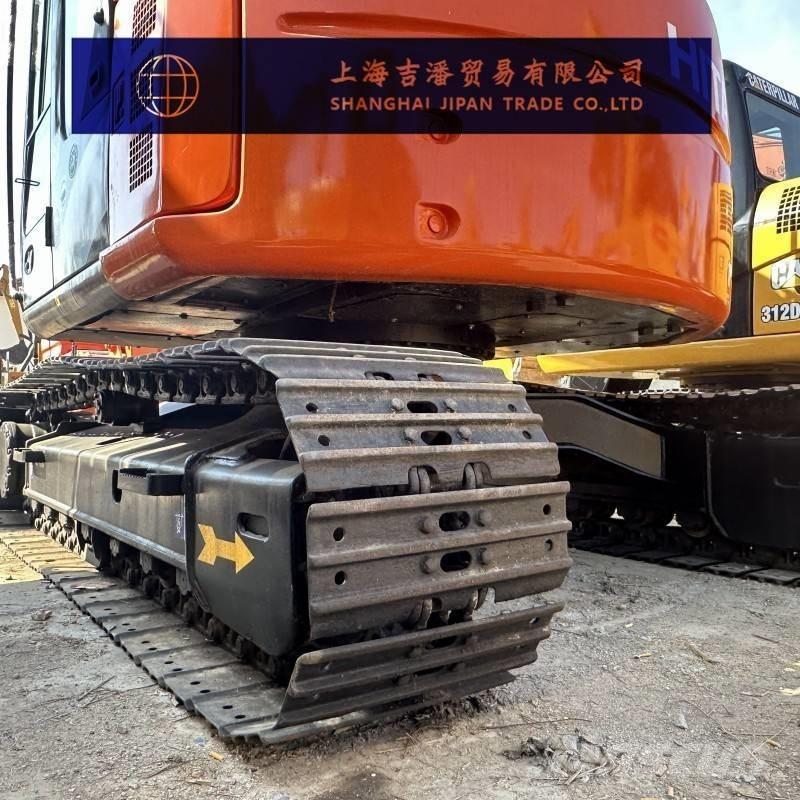

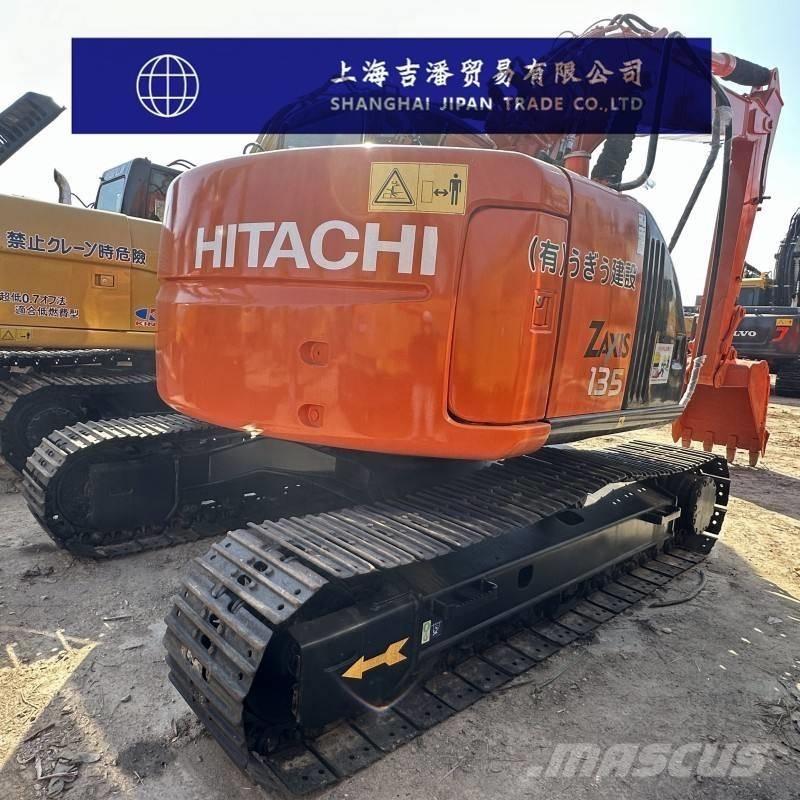

Hitachi ZX 135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification The working weight of the entire machine (kg) is 13,200 Bucket capacity (m³) : 0.19-0.66 Boom length (mm)4.6 (H-type) The length of the boom (mm) is 2.1/2.52/3.01 Origin: Japan Tonnage (tons)13 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Ground specific pressure (Kpa)41 Rotational speed (rpm) : 13.7 Walking speed (km/h) : 3.4/5.5 Climbing ability (%)70/35° Bucket digging force (kN)99 The digging force of the boom (kN) is 65 Power system Engine model: ISUZU CC-4BG1TC Rated power (kw/rpm) : 66/2150 Displacement (L)4.329 Number of cylinders (4) Cylinder diameter × stroke (mm) : 105×125 The cooling method is water cooling The working style is straightforward Hydraulic system Main pump type variables: 2 plunger pumps + 1 gear pump The main overflow set pressure (Mpa) is 34.3 Walking hydraulic motor type: Variable piston pump ×2 Rotary hydraulic motor type: quantitative plunger pump ×1 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.3 Pilot oil circuit (MPa)3.9 Boom cylinders - number × cylinder diameter × stroke (mm)105×70 Bucket rod cylinder - number × cylinder diameter × stroke (mm)115×80 Bucket cylinder - number × cylinder diameter × stroke (mm)100×70 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)200 Hydraulic oil tank (L)62 Engine oil change volume (L) : 15.8 Coolant (L)19 Main body size Total transportation length (mm) : 7290/7310 The total transportation width (mm) is 2490/2590/2690 The total transportation height (mm) is 2740/2870 The total height of the cab (mm) is 2740/2870 The ground clearance of the counterweight (mm) is 890 Track grounding length (mm) : 2880 The total length of the track (mm) is 3580 Track plate width (mm)500/600/700 Total width of the tracks (mm) : 2490/2590/2690 Track gauge (mm)1990 Minimum ground clearance (mm) : 440 Rear end turning radius (mm) : 2130 Scope of work Maximum excavation radius (mm) : 7930/8300/8760 The maximum excavation radius of the shutdown face (mm) is 7790/8160/8640 Maximum excavation depth (mm) : 5120/5530/6020 Maximum excavation height (mm) : 8950/9220/9610 Maximum unloading height (mm) : 6490/6760/7150 Maximum effective excavation depth (mm) : 4880/5320/5840 Lifting or deepening with a bulldozer (mm) no a bulldozer
