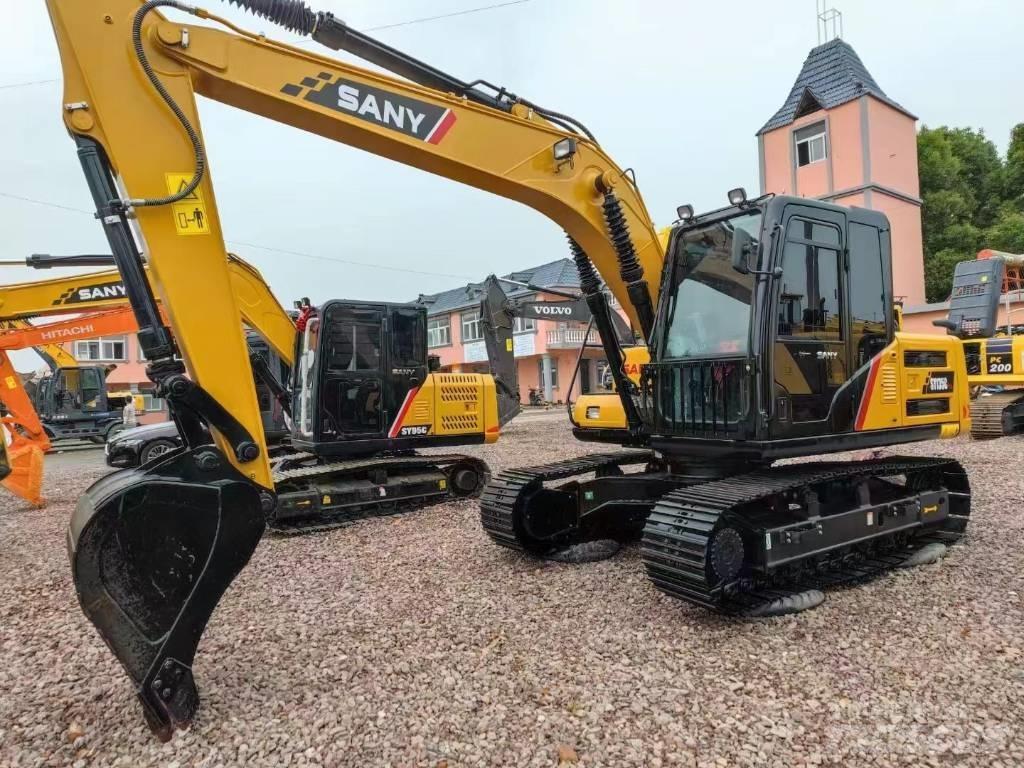

Sany SY 135 C Pro

Main Performances: ·Travelling speed(km/h):3.5/5.3 ·Swing speed(r/min):12 ·Gradeability(%):70 ·Digging force of bucket(kN):103 ·Digging force of arm(kN):67.4 Working Range: ·The maximum excavating height(mm):8685 ·The maximum unloading height(mm):6180 ·The maximum excavating depth(mm):5510 ·The maximum excavating radius(mm):8290 ·The maximum vertical excavating depth(mm):4890 Boundary Dimension: ·Track length(mm):3665 ·Boom length(mm):4600 ·Arm length(mm):2500 ·Wheel base of track(mm):1990 ·The minimum rotation radius of the rear end(mm):2240 ·The minimum ground clearance(mm):425 Oil Capacity: ·Fuel tank volume(L):240 ·Hydraulic oil tank volume(L):150 ·Engine oil capacity(L):15
