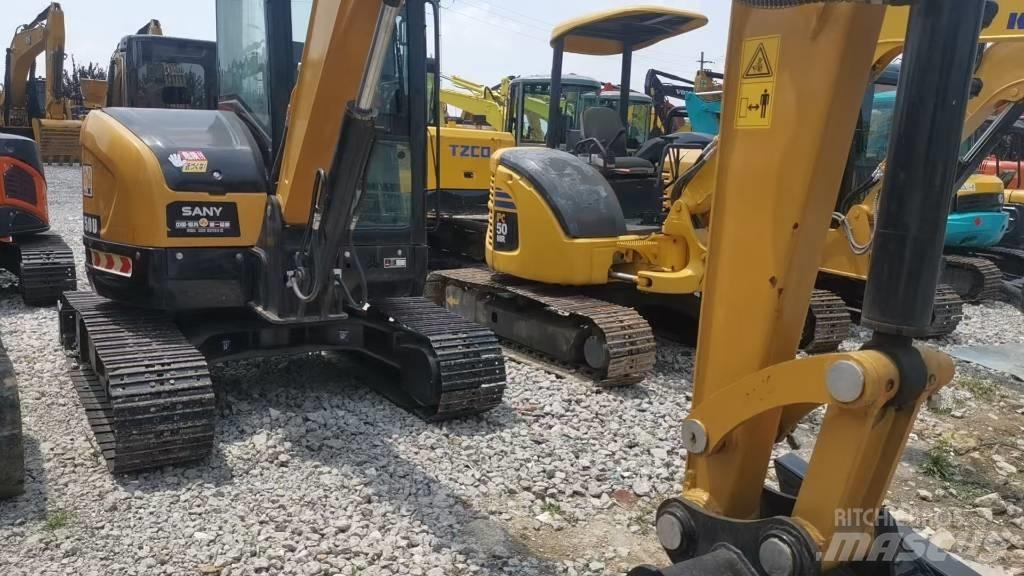

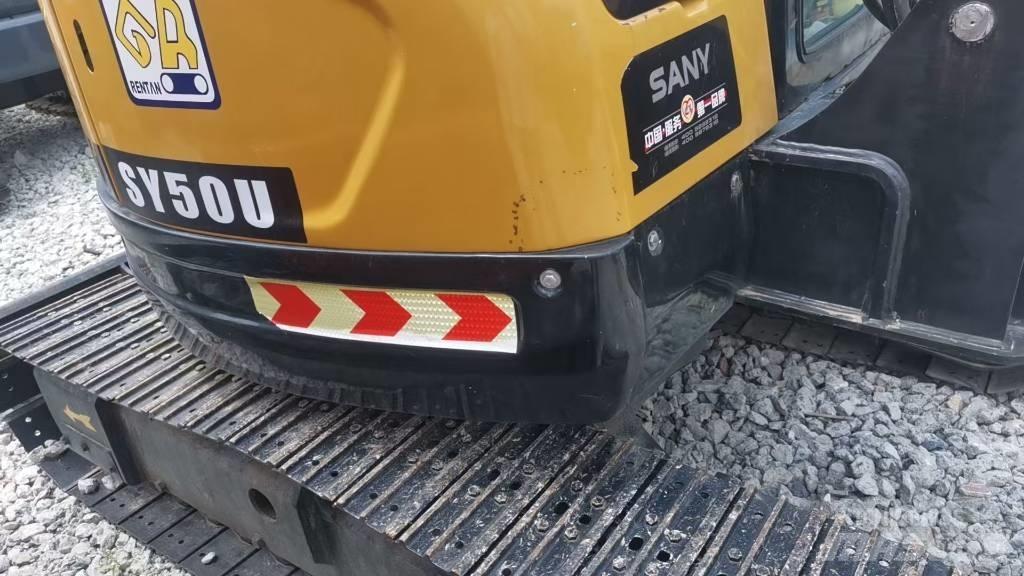

SNAY SY50U

Hello, I'm Gavin, specializing in the sales of construction machinery. We have been working in this industry for decades and have four large machine storage yards in Shanghai. If you are interested in any machines, please feel free to contact me. WhatsApp/WeChat: 0086 18019214942

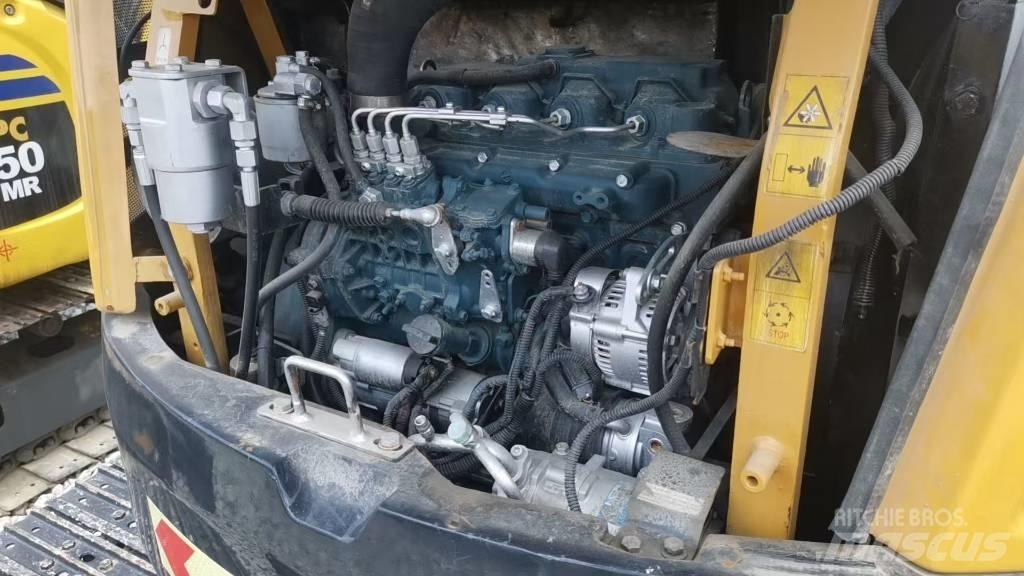

Power System: Engine Model: Yanma 3TNV80F Rated Power: 15.2kW / 2500rpm Maximum Torque: 63.2 - 67.4N·m / 1800 ± 100rpm Displacement: 1.266L Overall Machine Parameters: Overall Working Weight: 2680kg Bucket Capacity: 0.04 - 0.08m³ (Commonly 0.06m³) Rotation Speed: 10rpm Travel Speed: 4.5/2.6km/h Climb Ability: 47% Ground Pressure: 25.5Kpa Bucket Excavation Force: 24.3kN Bucket Arm Excavation Force: 14.2kN Oil Capacity: Fuel Tank: 34L Hydraulic Tank: 30L Engine Oil Replacement Volume: 3.4/1.6L Main Dimensions: Total Transport Length: 4285mm Total Transport Width: 1550mm Total Transport Height: 2430mm Track Ground Length: 1560mm Total Track Length: 2005mm Track Plate Width: 300mm Track Gauge: 1250mm Minimum Ground Clearance: 290mm Minimum Rotation Radius of Front Working Device: 2110mm Rotation Radius of Rear End: 775mm Maximum Height at Minimum Rotation Radius: 3200mm Operating Range: Maximum Digging Radius: 4850mm Maximum Digging Depth: 2820mm Maximum Digging Height: 4410mm Maximum Unloading Height: 3100mm Maximum Vertical Digging Depth: 2585mm Tilting Plate Width × Height: 300mm (Height) Tilting Shovel Lift or Push Depth: 360/330mm
