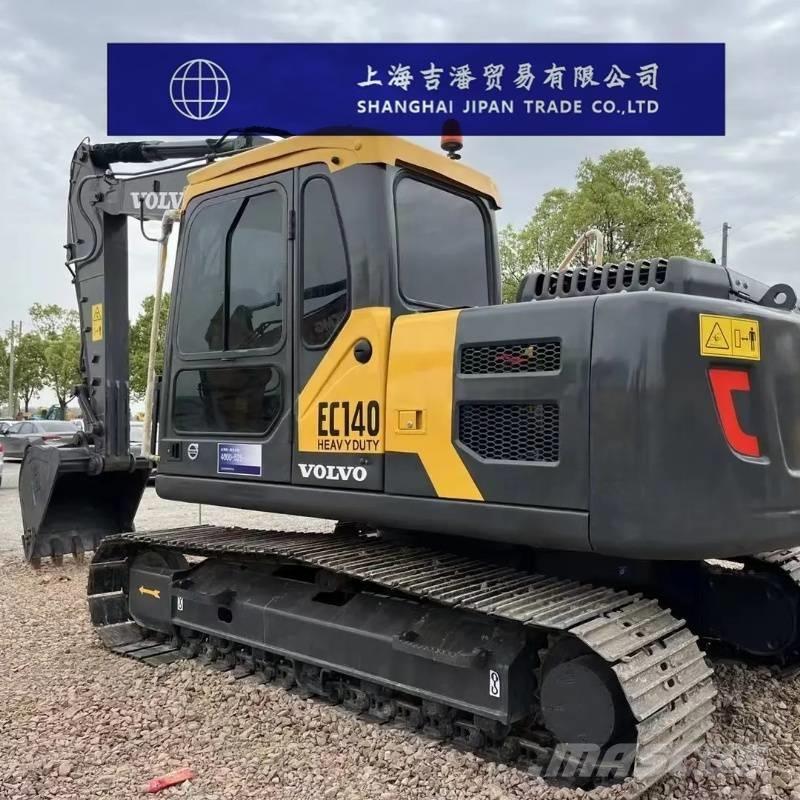

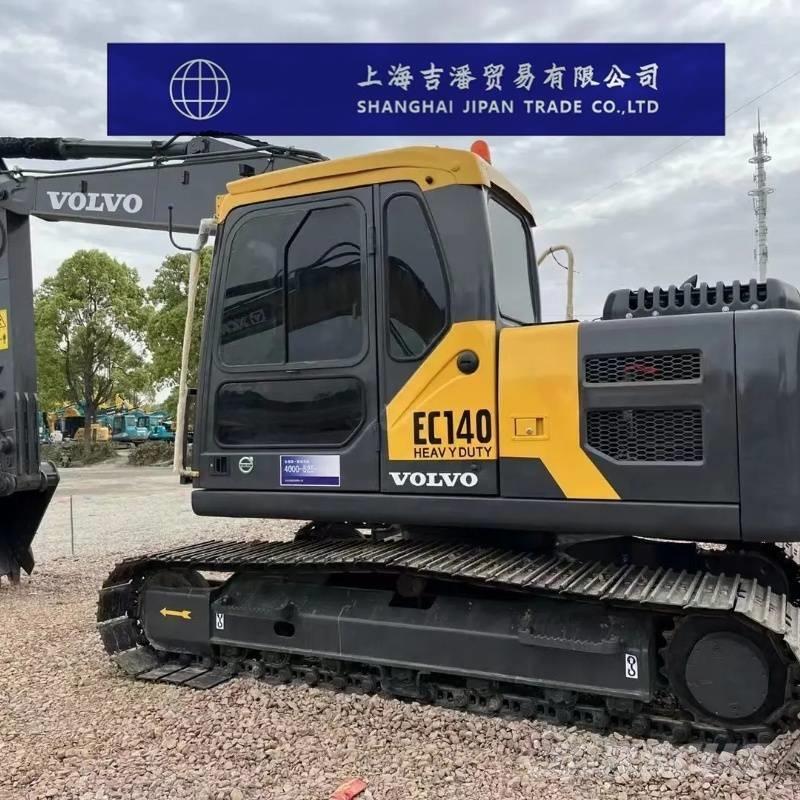

Volvo EC 140

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC140DL Excavator Parameter configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 14 Working weight of the whole machine (kg) 12920 - 15870 Bucket capacity (m³) 0.25 - 0.66 Boom length (mm) 4600 Stick length (mm) 2500 performance Rotational speed (rpm) 11.2 Rotational torque (Nm) 30.2 Travel speed (km/h) 2.9/5.2 Bucket digging force (kN) 82.2 Stick digging force (kN) 61.8 Maximum traction (kN) 119 dynamical system Engine model Volvo D3.8E Rated power (kw/rpm) 77.4/2200 Maximum torque (N.m) 369.5/1500 Displacement (L) 3.77 Number of cylinders (units) 4 Bore × stroke (mm) 100×120 Cooling method: Water cooling Hydraulic system Main pump type 2*variable axial piston pump Main pump maximum flow rate (l/min) 2 x 118 Pilot oil circuit (MPa) 3.9 Working Hydraulic Oil Circuit (Mpa) 32.4/34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 24.5 Oil capacity Fuel tank (L) 250 Hydraulic Tank (L) 85 Hydraulic System (L) 230 Engine oil change volume (L) 13.2 Coolant (L) 22.3 Body size Total length of transport (mm) 7720 Total Transport Width (mm) 2590 Cab total height (mm) 2800 Boarding width (mm) 2490 Total track length (mm) 3760 Track shoe width (mm) 500 Track gauge (mm) 1990 Minimum ground clearance (mm) 436 Counterweight ground clearance (mm) 920 The minimum turning radius of the front working device (mm) is 2570 Rear end turning radius (mm) 2200 Number of support wheels (unilateral) (pieces) 7 Number of support wheels (one side) (pcs) 1 Number of track shoes (single side) (pcs) 46 Scope of work Maximum digging radius (mm) 8330 The maximum excavation radius of the shutdown surface (mm) is 7820 Maximum digging depth (mm) 5530 Maximum digging height (mm) 8160 Maximum unloading height (mm) 5790 Maximum vertical digging depth (mm) 4580
