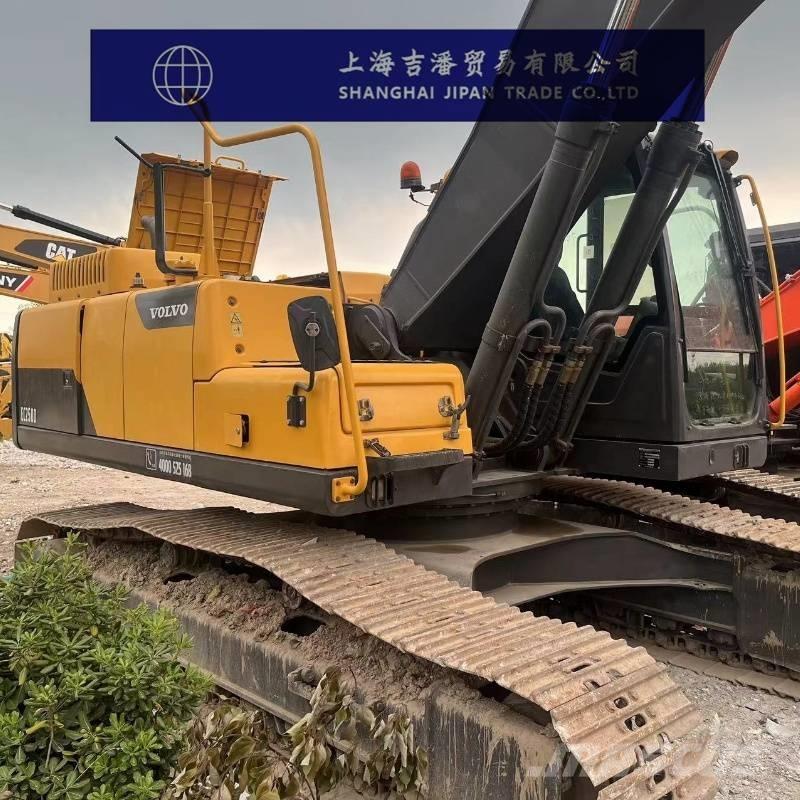

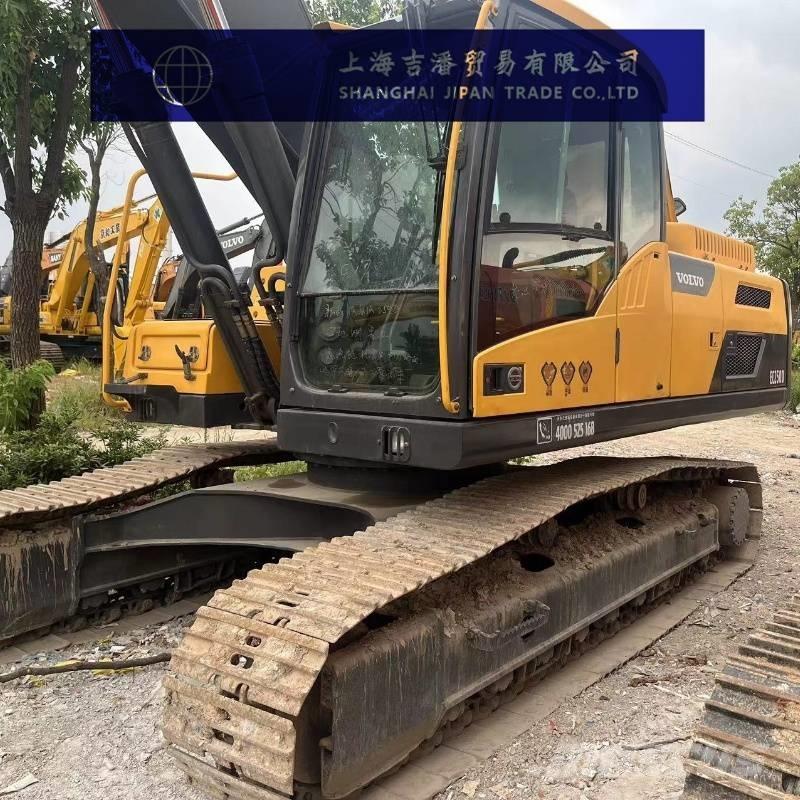

Volvo EC 250

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC250DL Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 25 The working weight of the whole machine (kg) is 24600-28000 Bucket capacity (m³) 0.48-1.85 Country of origin: South Korea performance Rotational speed (rpm) 11.9 Rotational torque (Nm) 91.6 Travel speed (km/h) 3.5 / 5.5 Climbing ability (%) 35 Maximum traction (kN) 217 dynamical system Engine model D7E Rated power (kw/rpm) 138/1800 Maximum torque (N.m) 870/1350 Displacement (L) 7.1 Number of cylinders (pcs) 6 Bore × stroke (mm) 108×130 Hydraulic system Main pump maximum flow rate (l/min) 2 x 240 Pilot oil circuit (MPa) 3.9 Working hydraulic oil circuit (Mpa) 33.3/36.3 Walking Hydraulic Circuit (Mpa) 36.3 Slewing hydraulic circuit (Mpa) 27.9 Oil capacity Fuel tank (L) 470 Hydraulic Tank (L) 195 Hydraulic system (L) 400 Engine oil change volume (L) 32 Coolant (L) 41 Body size Total length of transport (mm) 10260 Total width of transport (mm) 3190 Cab overall height (mm) 3020 Boarding width (mm) 2890 Track grounding length (mm) 3850 Total track length (mm) 4650 Track shoe width (mm) 600 Track gauge (mm) 2590 Minimum ground clearance (mm) 470 Counterweight ground clearance (mm) 1080 Scope of work Maximum digging radius (mm) 10260 The maximum excavation radius of the shutdown surface (mm) is 9690 Maximum digging depth (mm) 6980 Maximum digging height (mm) 9620 Maximum unloading height (mm) 6700 Maximum vertical digging depth (mm) 5650
