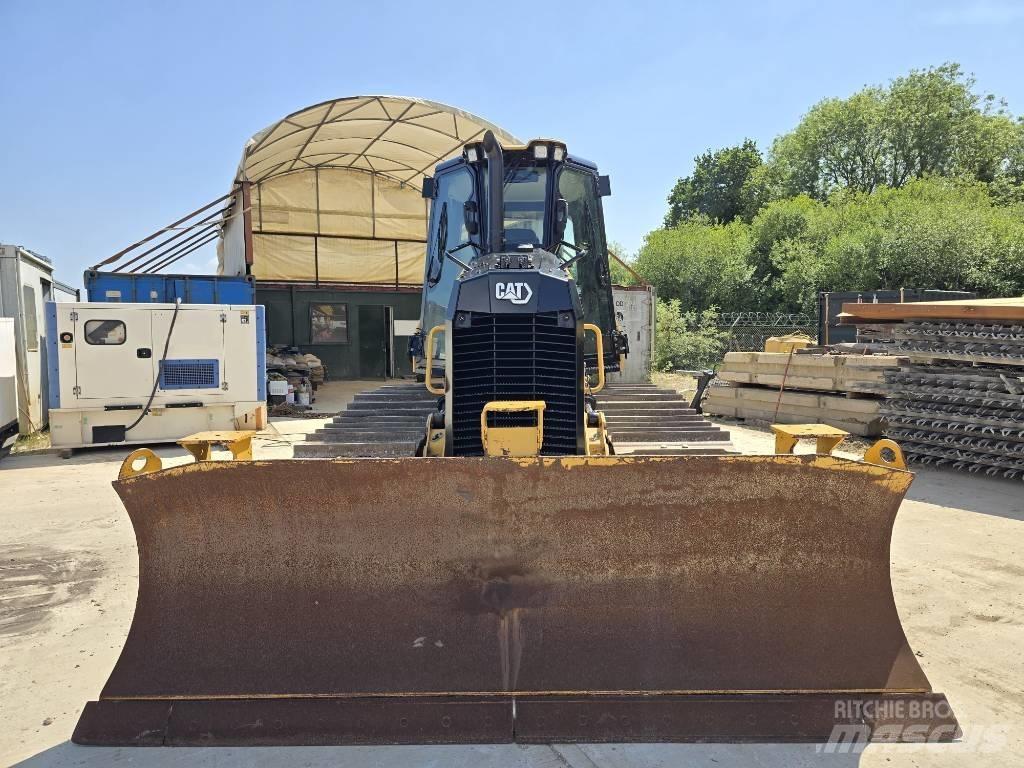

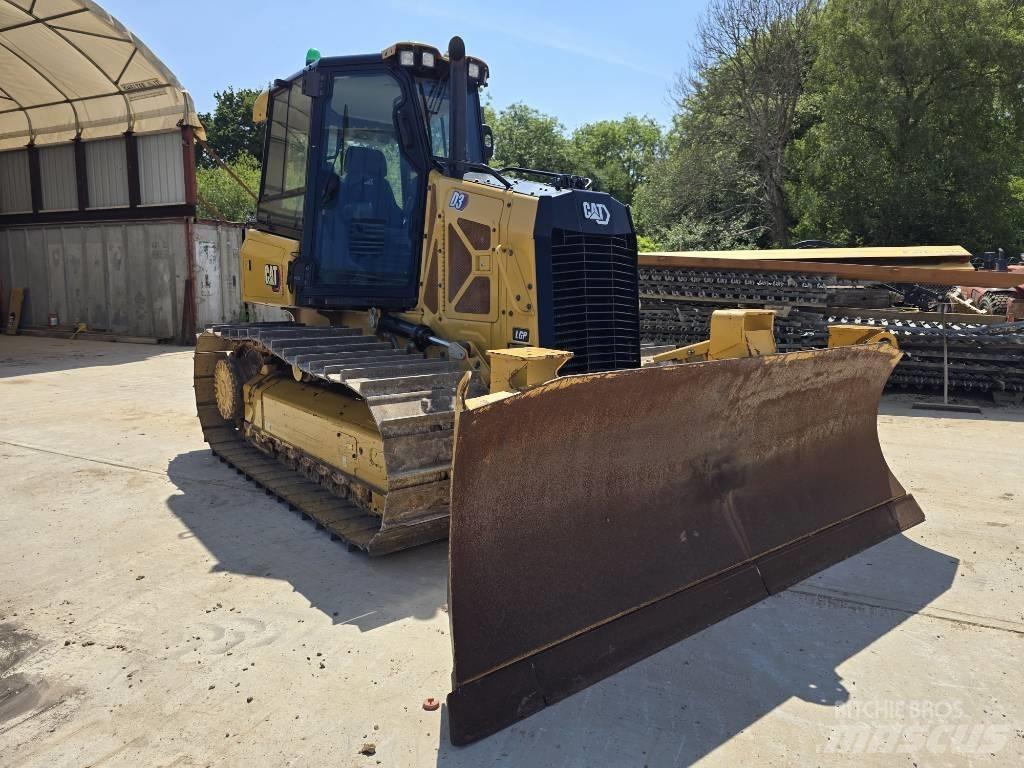

CAT D 3 LGP

For the full inspection report please visit our website. UNDERCARRIAGE Shoe width 660mm Shoe height 52mm, 95% Shoes - any wear in trailing edge Minimal Rail height 103mm, 75% Any signs of link failure No Average diameter of pins and bushings 57mm, 75% Have pins been turned on chains? No Sprocket 75mm Gape, 17mm tips, 70% IDLERS - UNDERCARRIAGE Left side front idler 50mm x 20mm, 75% Right side front idler 50mm x 20mm, 75% TOP ROLLERS - UNDERCARRIAGE Left side roller 155mm x 155mm, 90% Right side roller 153mm x 154mm, 90% BOTTOM ROLLERS - UNDERCARRIAGE Roller 1 162mm x 165mm Roller 2 165mm x 166mm Roller 3 16mm x 166mm Roller 4 166mm x 165mm Roller 5 168mm x 167mm Roller 6 Visual only Roller 7 Visual only
