Shantui DH17

Цена без НДС

Договорная

Compnay LOGO
Images3

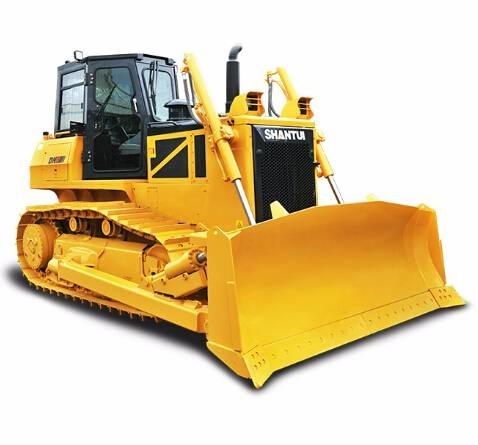

Shantui DH17 Гусеничные бульдозеры
Shantui DH17 Гусеничные бульдозеры
Shantui DH17 Гусеничные бульдозеры
FavoriteИзбранное
shareПоделиться
Save searchСохранить поиск
Распечатать

INFO

Тип машины
Гусеничные бульдозеры
Марка / модель
Shantui DH17
Год выпуска
2018
Состояние
Новый
Город
Jining, Shandong, China
Страна местонахождения
Китай
Общая категория
1
2
3
4
5
Mascus ID
743171FD

ПОДРОБНОСТИ

Складской номер
DH17
Последний тех осмотр
yes
История обслуживания
Есть
Рабочая ширина
342 см
Серийный номер
DH17
Масса
18 900 кг
Тип клинка
Полусферическое лезвие
Ходовая часть
Гусеничная
Тип кабины
Остеклённая кабина
Класс по нормам выхлопа
Ступень II
Двигатель
Weichai WD10G190E213
Мощность двигателя
125 кВт (170 л.с.)
Ширина гусеницы
560 mm
Трансмиссия
Shantui
Габариты (ДхШхВ)
5250 x 3420 x 3080 мм
Цвет
yellow
Шины
Shantui
Информация о состоянии/гарантия
ISO9001
Остаточный износ ходовой
100
Страна производства
Китай
Оборудовано для
propertynames.pp_equippedfor_2100012
Условия доставки
FOB, CFR, CIF, EXW
Сертификаты
EPA, CE, ANSI
Комплектация
- Лебёдка
- Кондиционер воздуха
- Дополнительная гидравлика
Одиночный рыхлитель
Показать все...
Прочая информация
Technical Features ●Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost. ●The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads. ●The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%. ●The ergonomic hexahedral cab features large space and excellent visual field. ●The suspended single accelerator pedal features small volume, large foot space, and high operation comfort. ? ●The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture. ●The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB. ●The safety passage system of the whole machine guarantees the driver’s safety. ●With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick. ●The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency. ●The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions. ●The accurate control can realize the bulldozing operations in narrow spaces. ●The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability. ●The optional three-tooth ripper and traction frame are available to meet the diversified operation needs. ●The structural parts inherit the excellent quality of Shantui mature products. ●The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade. ●The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability. ●The static drive system features compact structure, small volume, light weight, and easy maintenances. ●The modular structure eases the disassembling of parts and ensures low maintenance cost. Performance Parameters Length × width × height (mm) (excluding ripper) 5250×3420×3080 Operating weight (t) (excluding ripper) 18.9(including ripper) Engine model WD10G190E213 Net power/rated speed (kW/rpm) 127/2000 Ground pressure(Mpa) 0.064 Blade type Semi-U blade Blade capacity(m3) 4.4 Applicable Working Conditions Landfill of earthworks and bulldozing of other bulk materials and operations in extremely narrow sites.Показать все...
