Shantui SD16Plus

Цена без НДС

Договорная

Compnay LOGO
Images1

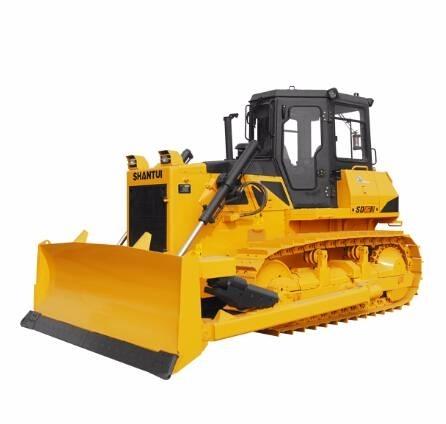

Shantui SD16Plus Гусеничные бульдозеры
FavoriteИзбранное
shareПоделиться
Save searchСохранить поиск
Распечатать

INFO

Тип машины
Гусеничные бульдозеры
Марка / модель
Shantui SD16Plus
Год выпуска
2018
Состояние
Новый
Город
Jining, Shandong, China
Страна местонахождения
Китай
Общая категория
1
2
3
4
5
Mascus ID
475DCEF8

ПОДРОБНОСТИ

Складской номер
SD16Plus
Последний тех осмотр
0
История обслуживания
Есть
Рабочая ширина
340 см
Серийный номер
SD16Plus
Масса
17 000 кг
Тип клинка
Прямое лезвие
Ходовая часть
Гусеничная
Тип кабины
Остеклённая кабина
Класс по нормам выхлопа
Ступень II
Двигатель
Shangchai SC11CB184G2B1
Мощность двигателя
118 кВт (161 л.с.)
Ширина гусеницы
510 mm
Трансмиссия
Shantui
Габариты (ДхШхВ)
5140 x 3400 x 3030 мм
Цвет
yellow
Шины
Shantui
Информация о состоянии/гарантия
ISO9001
Остаточный износ ходовой
100
Страна производства
Китай
Оборудовано для
propertynames.pp_equippedfor_2100012
Условия доставки
FOB, CFR, CIF, EXW
Сертификаты
EPA, CE, ANSI
Комплектация
- Лебёдка
- Кондиционер воздуха
- Дополнительная гидравлика
Многопоточный рыхлитель
Показать все...
Прочая информация
Technical Features ●Weichai WD10 engine features the advantages of strong power, high combustion efficiency, and easy maintenances and conformed to China-II emission regulation. ●The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure and splash lubrication feature high durability and high operating efficiency. ●The closed system is adopted to maintain the water tank pressure at specific value and the forced air supply can enhance the cooling effect. ●The harnesses of whole machine are protected by seamless corrugated tubes to improve the reliability of electric harnesses. ●The integrally injection molded instrument panel integrates the A/C, electric devices, and instrument box, featuring beautiful appearance and high grade. ●The optimized working lamp arrangement improves the lighting performance of vehicle. ●The reversing alarm and the working warning lamp are added to provide the safety warnings during working. ●The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. Hydraulic system: ●The external working valves ease the daily maintenances and realize better maintainability for the valves. ? ●The PPC pilot controls achieve better labor-saving and convenient operations. ●The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ●This product features powerful traction force and durability. The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ●The new hexahedron cab features enlarged interior space and broader visual field. ●The mounting surface and the sealing surface of the cab are separated to achieve better sealing performance. ●Floor Similar Products SD42-3 Standard Bulldozer SD42-3 Standard Bulldozer 123 Performance Parameters Length × width × height (mm) (excluding ripper) 5140×3388×3024 Operating weight(t) (excluding ripper) 17 Engine model SC11CB184G2B1 Net power/rated speed (kW/rpm) 120/1850 Ground pressure(Mpa) 0.067 Blade type Angle blade Straight tilting blade U blade Blade capacity(m3) 4.5 for straight tilting blade 4.3for angle blade 5 for U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Показать все...
