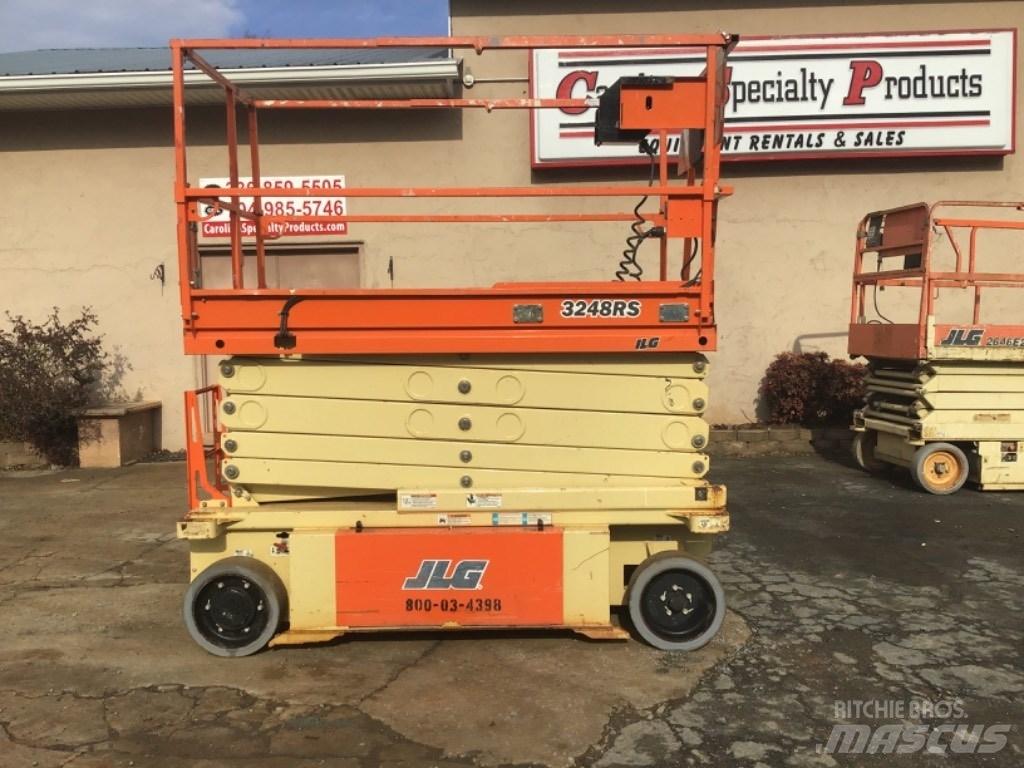

JLG 3248RS

Dimensions Overall Length 8.21in Wheelbase 6.86ft in Overall Width 3.84ft in Ground Clearance 5in Height W/O Rails 6.47ft in Turning Radius 7.91ft in Platform Dimension B 3.8ft in Platform Dimension A 8.31ft in Platform Max Platform Height 31.76ft in Deck Extension 35.44in Height Of Rails 3.61ft in Platform Capacity - Restricted 1000lb Platform Capacity - Unrestricted 700lb Max Platform Weight Capacity 1000.9lb Lower Time 50sec Platform Capacity - Extension 250lb Platform Inner Width 44.1in Platform Railing Height 31.76ft in Lift Time 50sec Platform Inner Length 98.43in Specifications Engine Maximum Ground Bearing Pressure 87psi System Voltage 24V Number Of Batteries 4 Battery Amp Hours 4 x 6V, 220 amp-hours Charger Amps 20amps Operational Operating Weight 4779.7lb Hydraulic System Fluid Capacity 1.7gal Max Speed 2.5mph Tire Size 16x5 in Tire Fill/Type Solid, Non-marking Hydraulic Pump Type Fixed Displacement Gear Performance Drive Speed - Platform Elevated 0.5mph Drive Speed - Platform Lowered 2.5mph Maximum Drive Height 31.8ft in Maximum Lift Height 31.8ft in Gradeability 25% Brakes Brakes Type Electric, Friction
