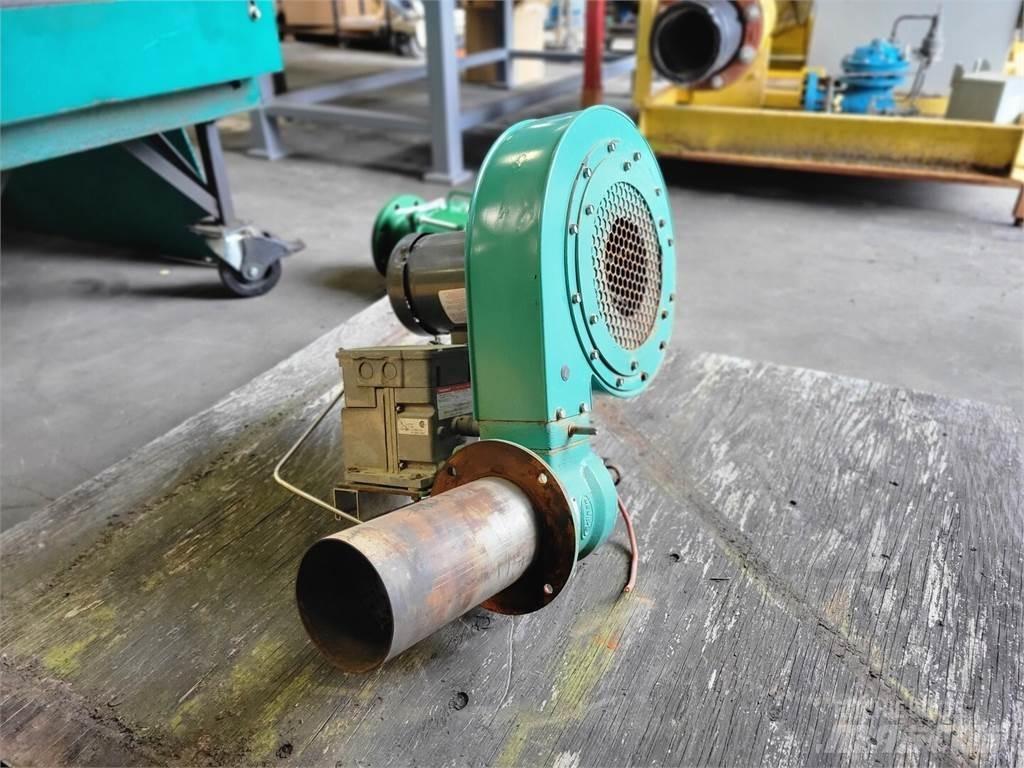

Eclipse RM100

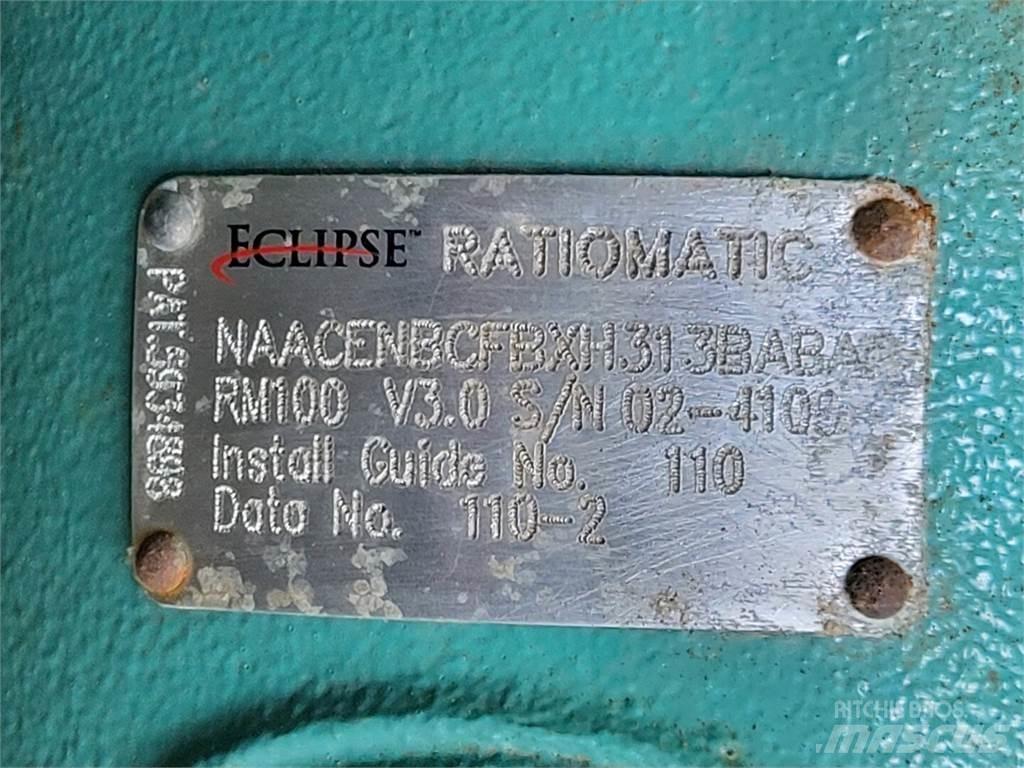

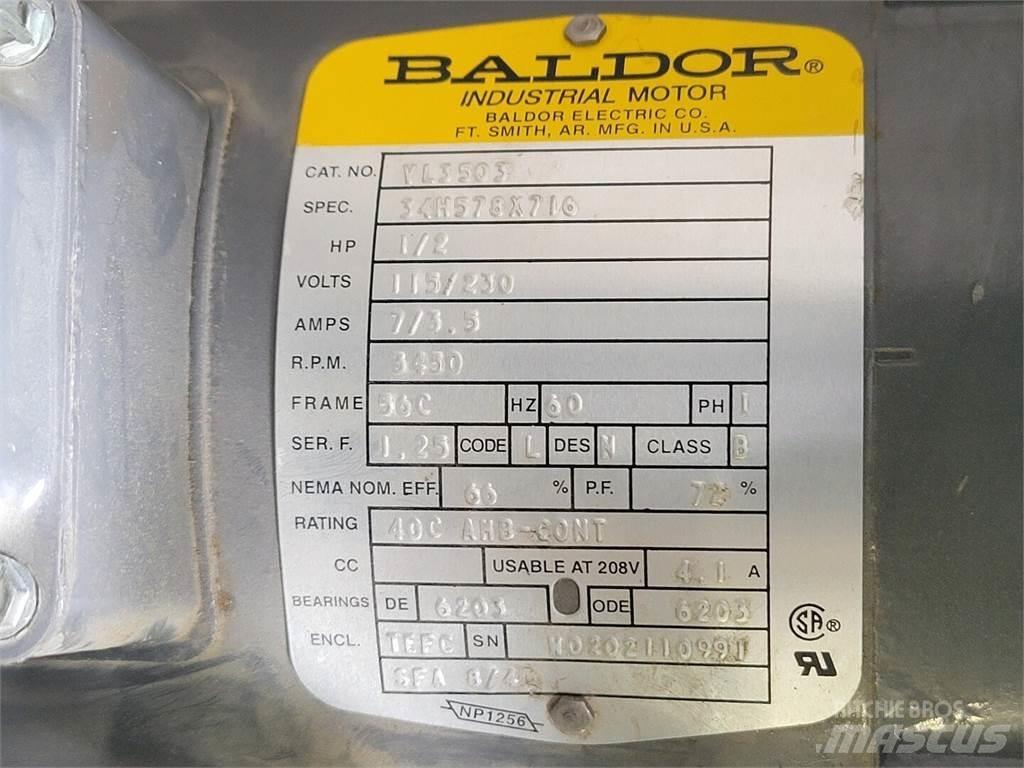

RatioMatic Burner RM100 V3.0 Title: RatioMatic Burner RM100 V3.0 SKU: 138179 Model: RM100 Condition: Used Dimensions: 21.00 (H) x 17.00 (W) x 27.00 (L) inches Maximum Input (-5.0 mbar, 50Hz): 1,225,000 Btu/h Maximum Input (-2.5 mbar, 50Hz): 1,150,000 Btu/h Maximum Input (0 mbar, 50Hz): 1,075,000 Btu/h Maximum Input (2.5 mbar, 50Hz): 1,000,000 Btu/h Maximum Input (5.0 mbar, 50Hz): 915,000 Btu/h Maximum Input (-5.0 mbar, 60Hz): 1,150,000 Btu/h Maximum Input (-2.5 mbar, 60Hz): 1,075,000 Btu/h Maximum Input (0 mbar, 60Hz): 1,000,000 Btu/h Maximum Input (2.5 mbar, 60Hz): 915,000 Btu/h Maximum Input (5.0 mbar, 60Hz): 815,000 Btu/h Minimum Input (with high turndown ratio regulator): 30,000 Btu/h Minimum Input (with standard ratio regulator ): 40,000 Btu/h Main Gas Inlet Pressure: 37 to 125 mbar High Fire Visible Flame Length (natural gas): 32" High Fire Visible Flame Length (propane/butane): 38" Maximum Chamber Temperature (alloy tube): 815 °C Maximum Chamber Temperature (SiC tube): 1038 °C Fuel: Natural Gas, Propane, Butane Blower Motor Power: 0.5 hp
