Maximus 522 T

Цена без НДС

Договорная

Compnay LOGO
Images9
Maximus 522 T Сортировочные установки
Maximus 522 T Сортировочные установки
Maximus 522 T Сортировочные установки
FavoriteИзбранное
shareПоделиться
Save searchСохранить поиск
Распечатать

INFO

Тип машины
Сортировочные установки
Марка / модель
Maximus 522 T
Год выпуска
2015
Кол-во отработаного времени (моточасы)
8 318 ч
Состояние
Проведён кап. ремонт
Город
Budapest, Budapest
Страна местонахождения
Венгрия
Mascus ID
E754E682

ПОДРОБНОСТИ

Серийный номер
3D07M5223062
Страна производства
Ирландия
Условия доставки
EXW
Прочая информация

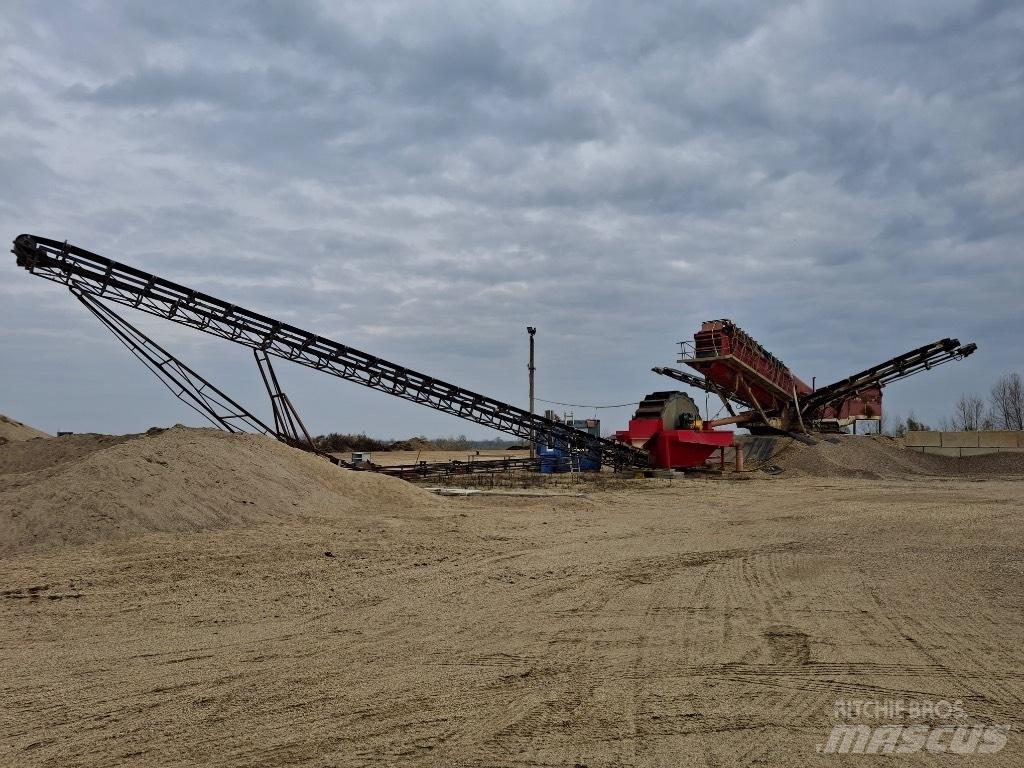

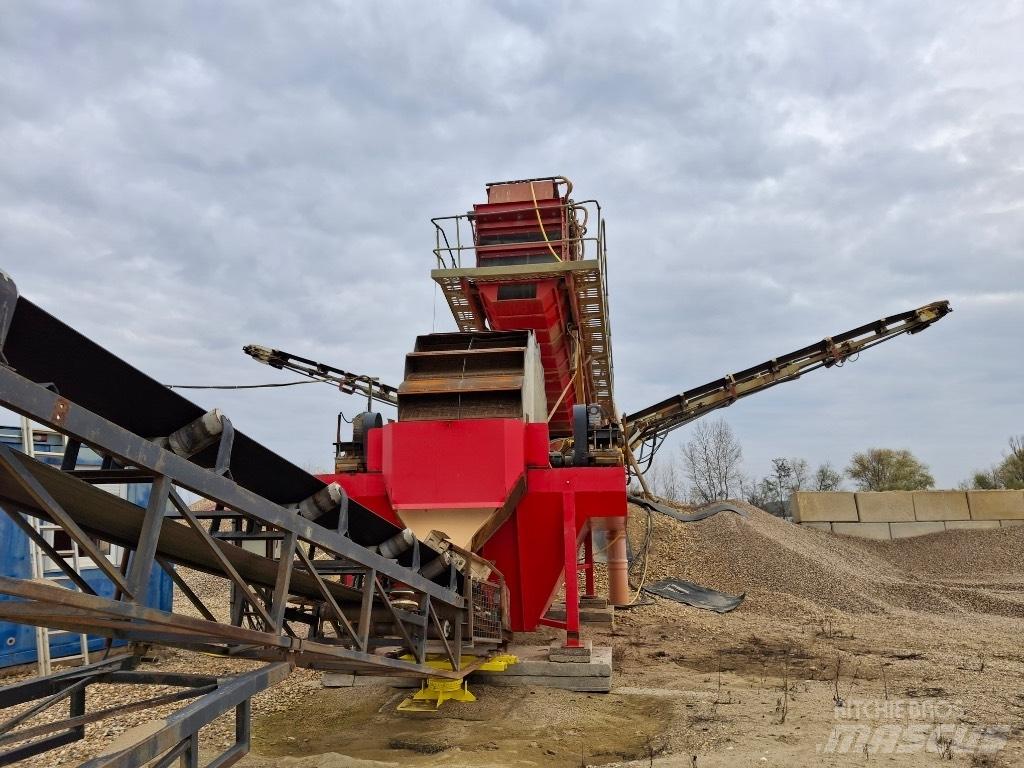

Machine Type: Maximus 522T Year of Manufacture: 2015 Operating Hours: 8,318 Dehydrator Tub Dimensions: 3500 x 4400 mm Dehydrator Wheel: 3-meter diameter, 1420 mm wide Rotating Stockpile Conveyor: 20 meters long with a 650 mm belt Water Pump Capacity: 2225 l/min, Electric Motor Power: 30 kW System Capacity: 150 tons/hour The screening unit of the machine was replaced with a brand-new factory unit in the spring by a manufacturer-provided service team. The three-deck screen surface is 6.1 x 1.525 meters. The entire machine unit has undergone a complete refurbishment: All drums, clutches, rollers, bearings, and springs have been replaced. 80% of the belts have been replaced. The transfer chutes have been refurbished. Most of the hydraulic hoses have also been replaced. The 95 kW Caterpillar engine has been inspected and fitted with a new water pump and generator. A new belt scale has been installed, providing performance data accessible via the internet. An automatic greasing system has been added to ensure proper lubrication of the bearings without relying on the operator’s discretion. A rotary base has been installed for the 0/4 stockpile conveyor, allowing a fan-shaped movement that enables the deposition of approximately 1,500-1,800 tons of sand without requiring a loader. The stockpile conveyor’s gearbox, motor, and travel drive system have been refurbished. The belt and all rollers have been replaced. The pump and electric motor supplying water to the classification system have been refurbished. This complete classification system delivers a real capacity of 150 tons/hour, while the dehydrator has a capacity of approximately 80-90 tons/hour.Показать все...

VibroService Kft.

Temesvár utca 19-21 1116 Budapest Budapest Венгрия
