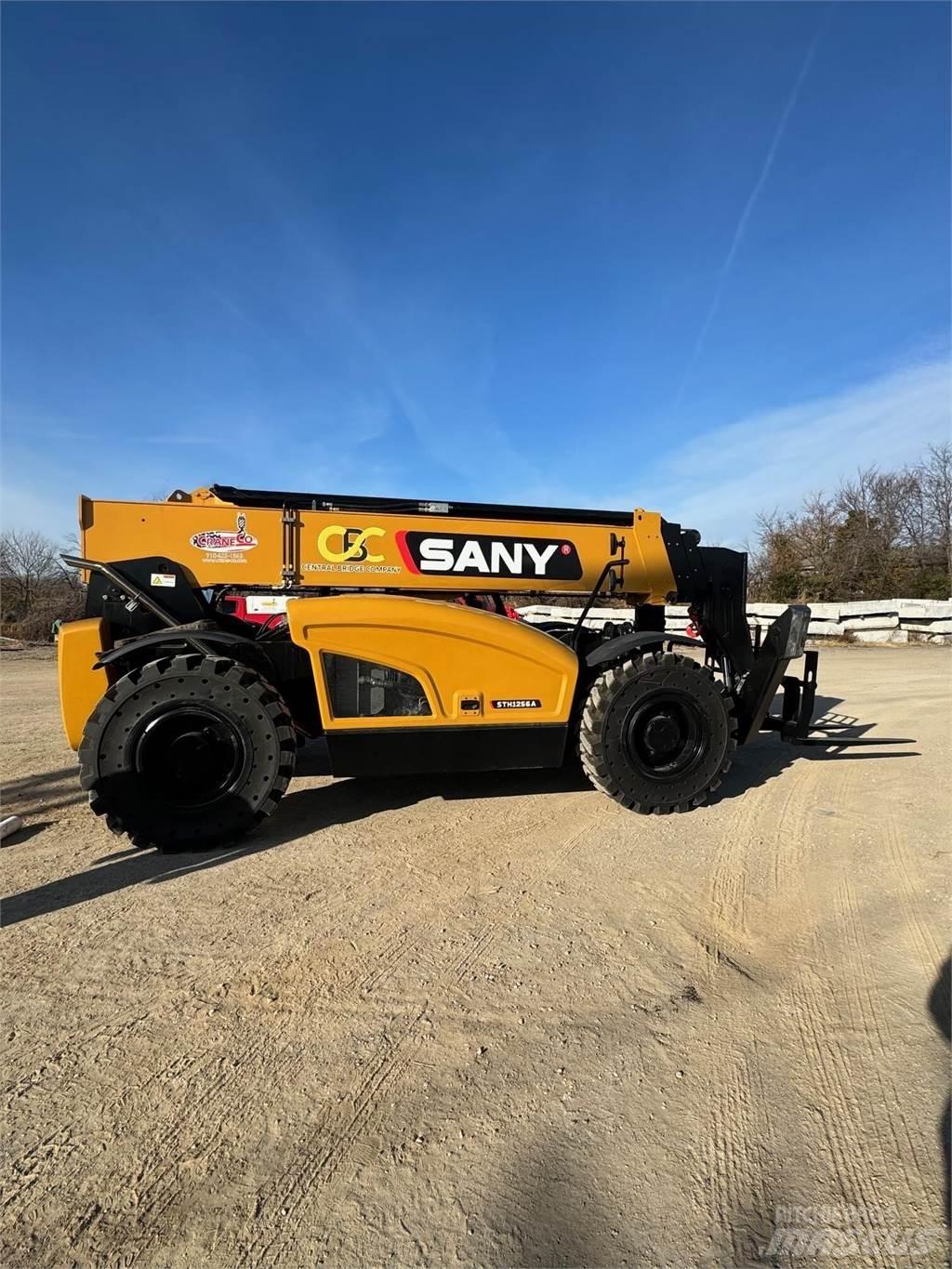

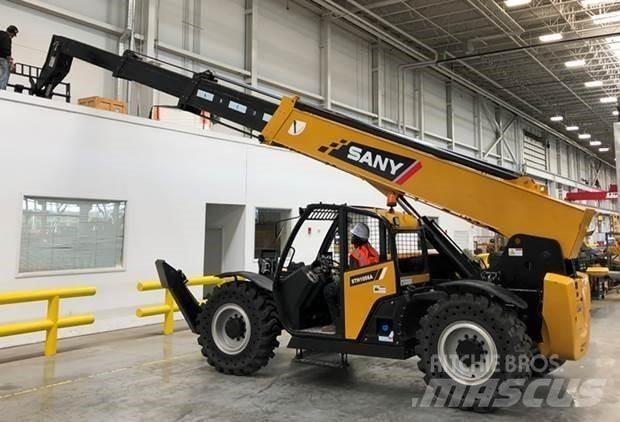

Sany STH1256A

Name: Sany STH1256A
Brand: Sany
SKU: A9AC0269
Availability: InStock

Цена без НДС

Договорная

Sany STH1256A Телескопические погрузчики

Избранное

Сохранить поиск

Распечатать

INFO

Тип машины

Телескопические погрузчики

Марка / модель

Sany STH1256A

Год выпуска

2024

Город

Tulsa, Oklahoma

Страна местонахождения

Америка

Mascus ID

A9AC0269

ПОДРОБНОСТИ

Тип тяги

Полный

Масса

16 327 кг

Мощность двигателя

95,6 кВт (130 л.с.)

Прочая информация

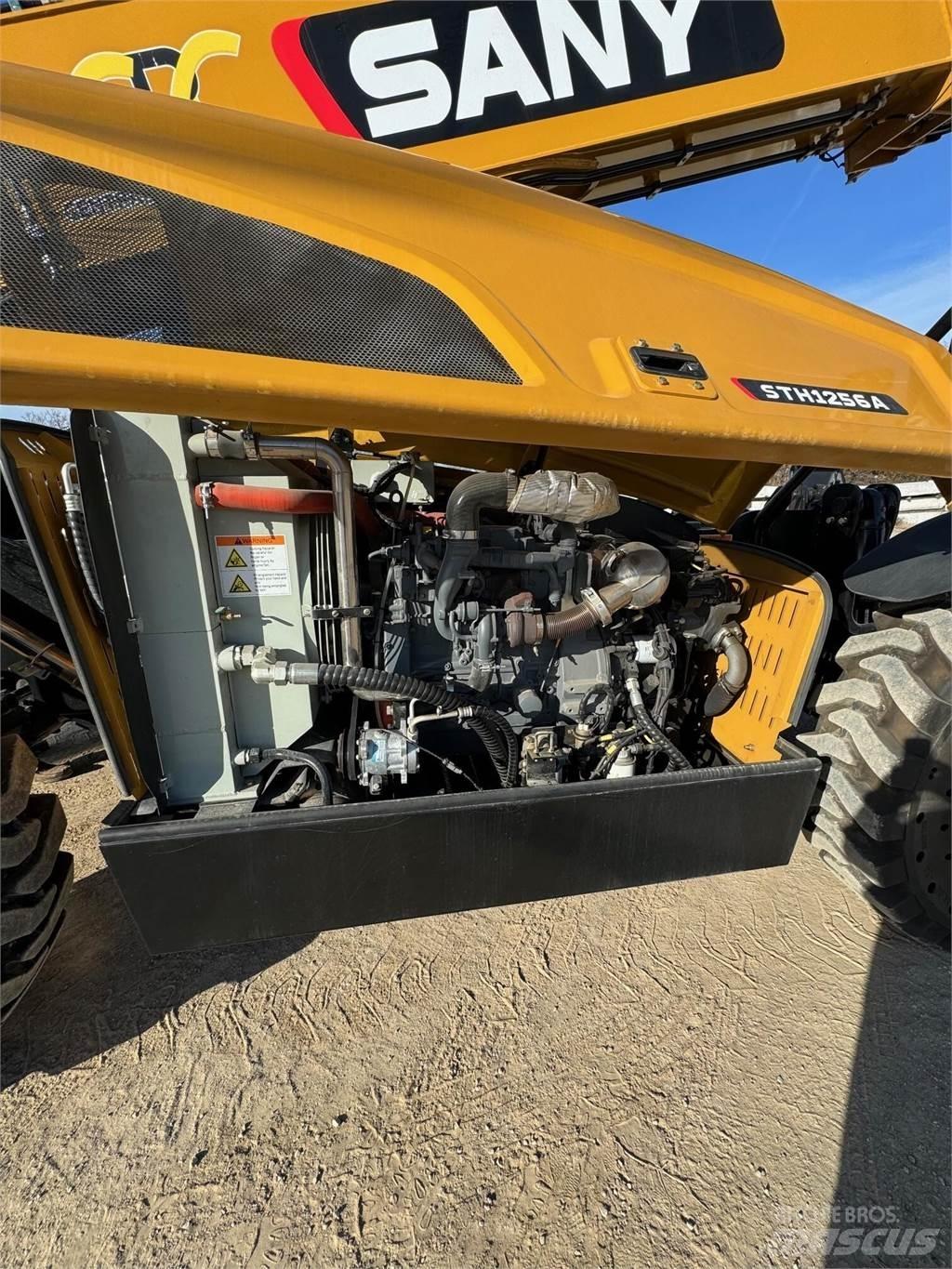

Description: (1) New 2023 SANY America Telehandler model STH1056A (10,000lb Capacity) with all Sandard equipment Dimensions: • Maximum Lift Height 56’ 2” 17.13 m • Maximum Forward Reach 42’ 11” 13.08 m • Height, Stowed 8’ 5” 2.56 m • Length, Stowed (without Forks) 20’ 7” 6.28 m • Width 8’ 6” 2.59 m • Wheelbase 11’ 5” 3.49 m • Ground Clearance (Center) 1’ 6” 0.46 m • Ground Clearance (Axle) 1’ 6” 0.45 m • Weight 33,290 lbs 15,100 kg Capacities: • Power 121 hp 90 kW • Torque 360 lbf-ft 488 Nm • Electrical System 24 volt • Hydraulic Tank Capacity 33 gal 124 L • Hydraulic System Capacity (with Tank) 42 gal 159 L • Fuel Tank Capacity 36 gal 135 L Components: • Engine Deutz TCD3.6 • Transmission Dana VDT12000 • Axles F/R Dana 223 / 213 • Hydraulic Pump Kawasaki Load Sense Piston Pump • Hydraulic Manifold Parker • Exhaust aftertreatment (DPF+SCR (DEF required)) PowerTrain: • Powershift transmission • Planetary limited slip axles • Full-time 4 wheel drive • Gear selector lever (Steering-column) • Manual shift • Service brake, 4-wheel, wet-disc, spring applied, hydraulic release • Parking brake, same as service brake • Cushioned solid tires Hydraulic: • Full variable load-sensing system • Single electric over hydraulic joystick controls • Axial piston pump • Hydraulic quick coupler lines for auxiliary hydraulics • Self-leveling forks • Three driver-selectable steering modes (2W, 4W, 4W-Crab) Cabin: • ISO certified ROPS/FOPS Canopy • Emergency hammer (closed cabin only) • Rubber isolated cab mounts • Fully enclosed cab with automatic heat and air conditioning • camer s Digital instrument display • Mechanical suspension seat • Seat belt, 3 inch retractable • Dual armrests • Rear-view camera • 2-speed fan • Dedicated display for rear-view Electrical: • 24v electrical system • 2-12 volt batterie Productivity: • Back up camera • Reverse sensing system • Full 4-wheel fender package • LED work lights on cab and boom • Flashing beacon • Lifting hook • Frame leveling 10 degrees side to side • Rear-Axle stabilization system • Axle-mounted front stabilizers Performance: • Maximum Lift Capacity 10,000 lbs 4 536 kg • Lift Capacity at Maximum Height 5,000 lbs 2 268 kg • Lift Capacity at Maximum Reach 3,000 lbs 1 361 kg • Boom (Raise/Lower) 14 seconds / 11 seconds • Boom (Extend/Retract) 16 seconds / 15 seconds • Frame Leveling +/- 10 degrees • Maximum Drive Speed 17 mph 28 kph • Outside Turning Radius (4WS) 14’ 1” 4.30 m • Auxiliary Hydraulic Flow 17 gpm 63 L/min • Auxiliary Hydraulic Pressure 2,466 psi 17 MPa • Standard Tire Size 14.00-24 • Warranty 3-Year or 3,000 hour “whichever comes first” Factory Warranty Options: • 60” Carriages • Forks 60” Coupler: Yes EngineMake: CUMMINS EngineModel: QSF3.8 FrontFenders: Yes Guards: Yes Monitor: Yes ROPSType: Open TireType: Solid BaseDriveSpeed: 19 mph ShippingLength: 20 ft ShippingWidth: 8 ft QuickAttach: Yes Outriggers: Yes NumForwardSpeeds: 4 ShippingHeight: 8 ft ShippingWeight: 35,494 lb NumFenders: 4Показать все...
