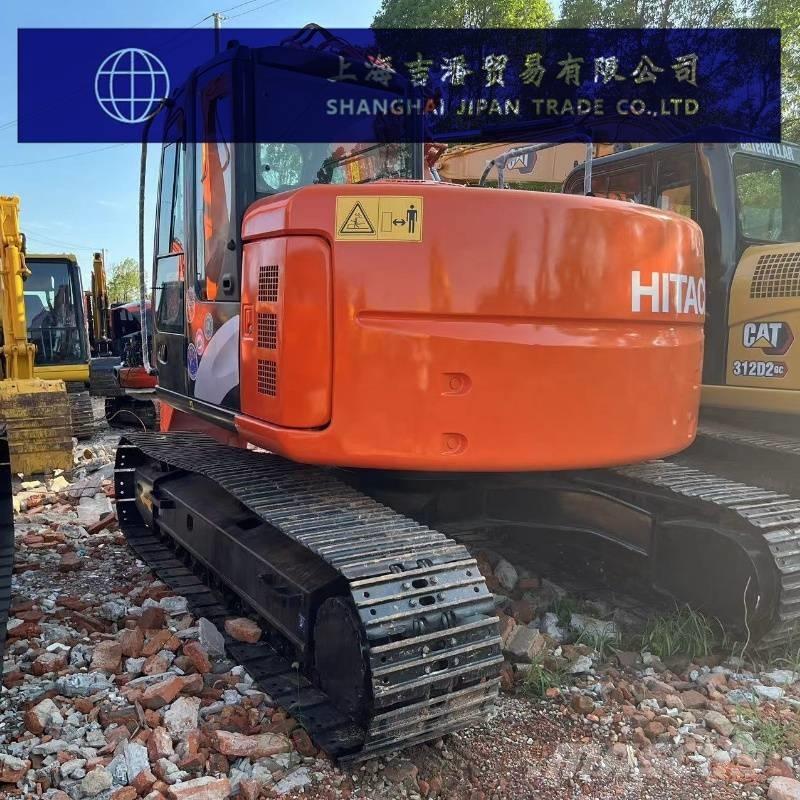

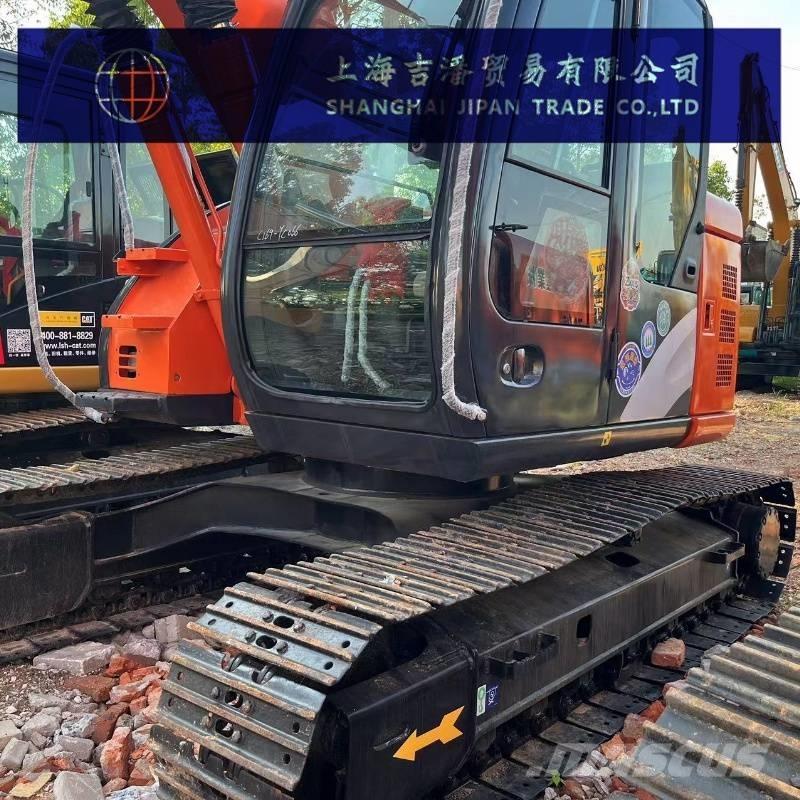

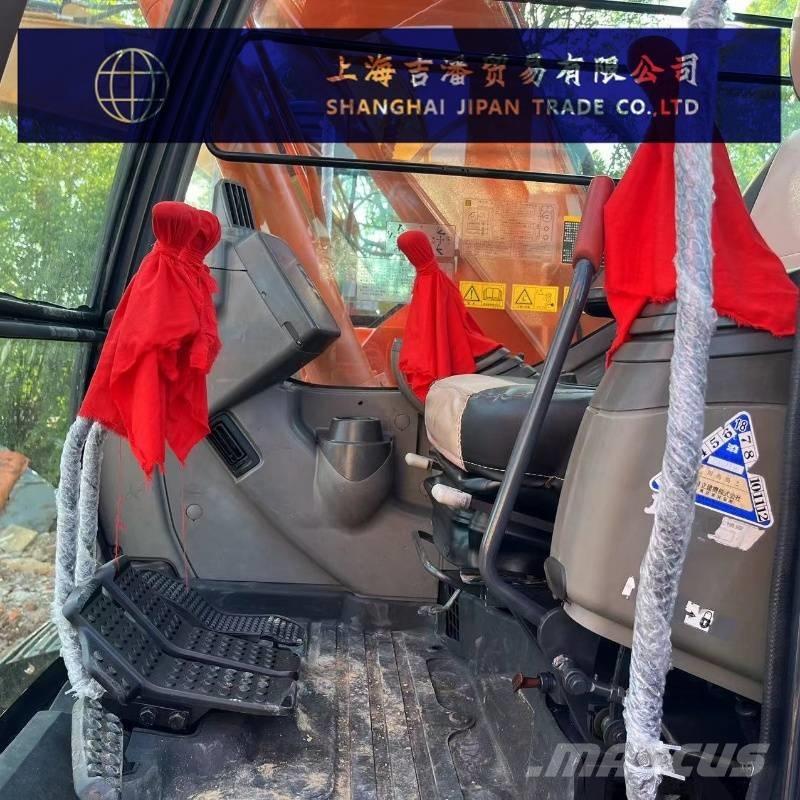

Hitachi ZX 135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information Operating weight: 13,700–14,900 kg Bucket capacity: 0.5 m³ Origin: Japan Power type: Conventional power Bucket type: Backhoe bucket Power System Engine model: Isuzu 4JJ1 Rated power: 72 kW Displacement: 3 L Number of cylinders: 4 Cooling method: Water-cooled Operation type: Four-stroke, turbocharged intercooled, common-rail electronic injection engine Emission standard: Compliant with US Tier 4 / EU Stage ⅢB Hydraulic System Main pump type: 2 × Variable displacement axial piston pumps Main relief pressure: 36.3 Mpa Maximum main pump flow: 105 × 2 L/min Travel hydraulic motor type: Variable displacement axial piston motor Swing hydraulic motor type: Axial piston motor Working hydraulic circuit pressure: 34.3 Mpa Travel hydraulic circuit pressure: 34.3 Mpa Swing hydraulic circuit pressure: 32.3 Mpa Control hydraulic circuit pressure: 3.9 Mpa Pilot circuit pressure: 3.9 MPa Pilot pump flow: 32.9 L/min Fluid Capacities Fuel tank capacity: 220 L Hydraulic oil tank capacity: 60 L Hydraulic system capacity: 125 L Engine oil change capacity: 17 L Coolant capacity: 20 L Dimensions Overall transport length: 7,740–7,760 mm Overall transport width: 2,690 mm Overall transport height: 2,780–2,790 mm Total cab height: 2,790 mm Upper structure width: 2,480 mm Counterweight ground clearance: 840 mm Track ground contact length: 2,880 mm Total track length: 3,580 mm Track shoe width: 600–700 mm Total track width: 2,490–2,690 mm Track gauge: 1,990 mm Minimum ground clearance: 410 mm Working Range Maximum digging radius: 8,380 mm Maximum digging radius at ground level: 8,240 mm Maximum digging depth: 5,490 mm Maximum digging height: 9,290 mm Maximum dumping height: 6,830 mm Maximum vertical digging depth: 4,730 mm
