Trimble

Цена без НДС

Договорная

Compnay LOGO
Images3
Trimble Запчасти для кранов
Trimble Запчасти для кранов
Trimble Запчасти для кранов
FavoriteИзбранное
shareПоделиться
Save searchСохранить поиск
Распечатать

INFO

Тип машины
Запчасти для кранов
Марка / модель
Trimble
Состояние
Новый
Город
Fort Piecre, Florida
Страна местонахождения
Америка
Общая категория
1
2
3
4
5
Mascus ID
011F87EC

ПОДРОБНОСТИ

Складской номер
TR-GS112
Прочая информация

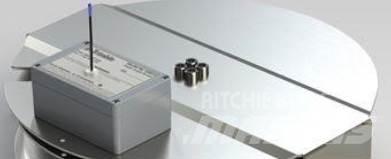

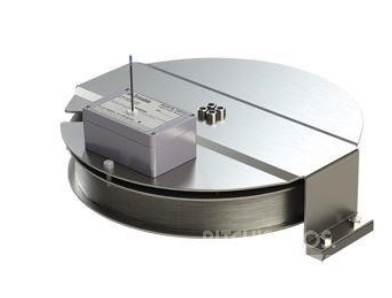

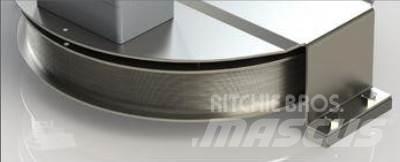

GS112 LENGTH SENSOR CABLE REEL Designed for proportional hydraulic crane booms and non-proportional booms with a maximum boom extension of 140 ft (42.67 m) Cable end can be terminated at the end of the first telescoping section on proportional booms, eliminating the need to run the cable all the way to the boom tip and reducing cable breakage Direct Sequence-Spread Spectrum-Two Way Communication Length is recorded by 2 magnetic switches driven by a series of magnets sealed in the reel drum; the GS112 Cable Reel isn't subject to the wear of traditional potentiometers due to this contact free method Transmission Range: 4,300 feet (1,300 meters) Ships as standard with 1 "D" Cell Lithium Battery, 1-2 years battery life The GS112 Cable Reel can be left or right hand cab mounted, the sensor will automatically adjust its orientation Easy calibration: Confirm retracted and extended boom lengths and the system will automatically calculate trim & scale Calibration data is stored inside the wireless angle/length transmitter on the cable reel Wireless transmitter eliminates cable running from cable reel to display Operating temperature: -22°F to +150°F (-30°C to +65°C) 2 year warranty against defects Typical angle accuracy: 0.2° Measurement is optimized for crane movements, both the boom angle and boom length are measured 4 times per second Показать все...

Select Crane Sales, LLC

3965 Selvitz Road 34981 Fort Pierce Florida Америка
